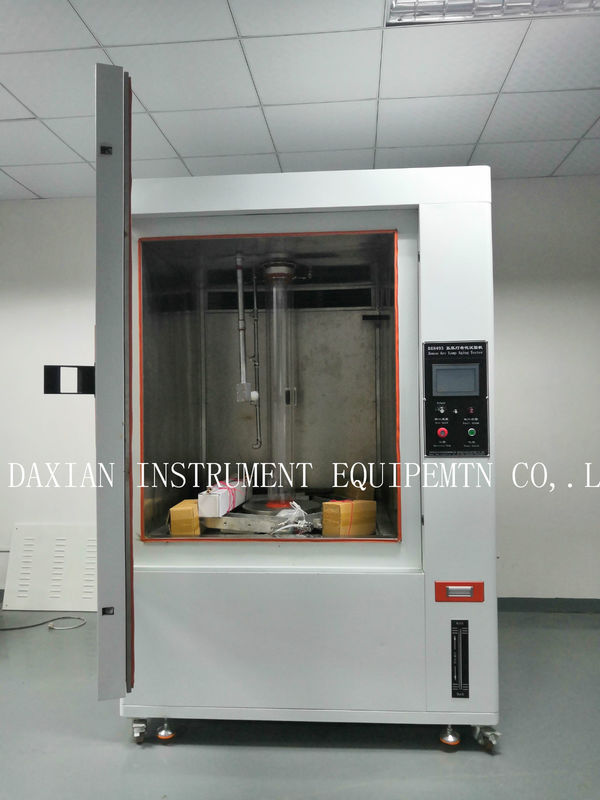

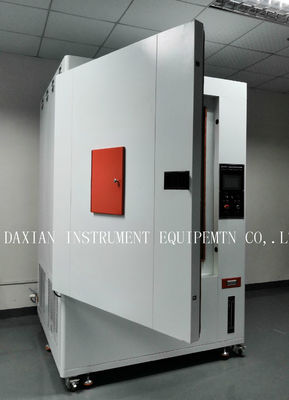

ANSI Z97.1-2009 Environmental Test Chamber , Xenon Arc Weatherometer Test Chamber
Descriptions:
ASTM G 155-04a Xenon Arc Aging Test Chamber Suitable for plastics, rubber, paints, coatings, inks, paper, medicines, food, cosmetics, textiles, auto parts, packaging materials, construction materials, electrical and electrical products, etc.; provide a corresponding environment for scientific research, product development and quality control Simulation and accelerated tests provide important test basis.
Standards:
- ASRM G155-2013
- ANSI Z97.1-2009
- ASTM D2565.
Performance Indicators:
|
Temperature range
|
RT+10℃~80℃
|
|
Humidity range
|
50%±5%
|
|
Rain time
|
1～9999 minutes, adjustable
|
|
Rain cycle
|
1-240 minutes, adjustable interval (break)
|
|
Spectral wavelength
|
300nm～400nm
|
|
Xenon lamp power
|
8.5kw (life: 2600 hours, water cooling)
|
|
Lamp
|
600mm long, 2 pieces in total
|
|
Radiation intensity
|
0-60w/m²
|
|
Power supply
|
AC380V±10% 50±0.5HZ
|
|
Operating environment temperature
|
±5℃～+30℃ ≤85%R·H
|
Control operating system: PC can be connected via IP to control/operate the test chamber system

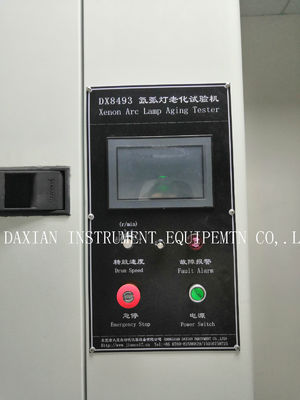

Time controller: touch screen precise timing control
Accuracy range: setting accuracy: temperature ±0.1℃, humidity ±0.5%R·H; indicating accuracy: temperature ±0.1℃, humidity ±0.5%R·H
Temperature and humidity sensor: platinum resistance Pt100Ω/mv
Humidification system: external isolated all stainless steel shallow surface evaporative humidifier
Blackboard temperature: bimetallic blackboard thermometer 55℃~75℃
Water supply system: humidification and water supply adopt automatic control, xenon lamp cooling and circulating water
Temperature controller: imported microcomputer integrated temperature and humidity controller
Humidity: 30%~65%RH when irradiated, up to 90%RH when dark
Circulation system: temperature-resistant and low-noise air-conditioning motor, multi-blade centrifugal wind wheel
Outer box material: high-grade spray color steel plate/SUS304 stainless steel matte line hairline treatment
Inner box material: SUS304 high quality stainless steel light board
Sample rack material: SUS304 high quality stainless steel bar
Door frame heat insulation: high and low temperature aging resistant silicone rubber door seal
Standard configuration: 1 set of anti-radiation glass window, 1 dynamic sample rack, 2 xenon lamp tubes
