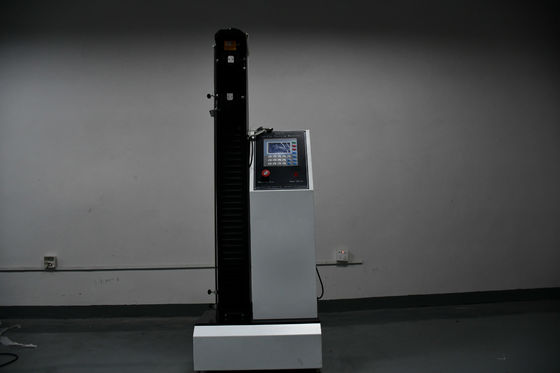

UL1581 Lab Test Machine Microcomputer Tensile Testing Machine
Remark :
This testing machine suitable for various industries such as rubber and plastic, wire and cable, shoemaking, leather, textile, paper and metal copper and aluminum wire, aluminum foil; can test the tensile strength, elongation, tearing and adhesive force of the sample, Peeling, shearing force, adhesive force, connecting force, etc. High-precision sensor is adopted to make the sensing force have high accuracy; elongation and tensile strength meet ISO37 standard, tear resistance reference standard ASTM624B
Standards:
ISO37,ASTM624B,UL1581, IEC 811.
Specification:
1. Tension range: 0 ~ 30Kg
2. With peak lock function.
3. Test speed: stepless speed regulation: 0.1 ～ 500mm / min adjustable
Gear speed adjustment: 50, 100, 250, 350, 500mm / min can be switched at will
4. Maximum stroke: 800mm
5. Unit conversion: Kg / Lb or Lg / N
6. Motor: AC motor plus frequency control
7. Induction method: high precision sensor
8. Load accuracy: ± 0.5%
9. Load resolution: 0.01kg
10. Speed accuracy: 50 ± 0.5mm, 500 ± 1.0mm
11. Working power supply: AC220V 50Hz
12. Body size: 460mm (length) * 300cm (width) * 1550mm (height)
13. Weight: 80kg
