IEC60332.1.2 1kw Pre-Mixed Cable Fire Testing Equipment

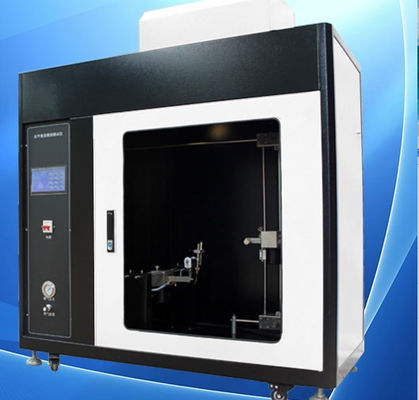

Large Image : IEC60332.1.2 1kw Pre-Mixed Cable Fire Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Certification:	IEC60332.1.2
Model Number:	DX8459

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	15 sets per month

Contact Now

IEC60332.1.2 1kw Pre-Mixed Cable Fire Testing Equipment

Description

Type:	Cables Fire Testing Equipment	Dimensions:	L1100mm×W900 ㎜×H1200 ㎜
Power Source:	220V, 50/60 Hz	Temperature Test Range:	0~1500℃
Burner:	Φ7mm ± 0.5mm	Warranty:	12 Months
Highlight:	IEC60332.1.2 Fire Testing Equipment , 1kw Pre-Mixed Fire Testing Equipment , IEC60332.1.2 Cable Testing Equipment

IEC60332.1.2 Electric And Optical Fibre Cables Vertical Flame Propagation 1kw Pre-Mixed Flame Test Machine

Product overview:

The mica board combustion tester is a test method for testing the flame resistance characteristics of the mica board combustible substrate surface under specified conditions, and it is also suitable for the mica board flame resistance time
Determination.

Meet the standards:

Meet the requirements of IEC60332-12 standard.

Main parameters:

Temperature uniformity	±2.5℃
Propane flow meter range	10L/min
Burner	Φ7mm ± 0.5mm
Test station	2 stations
Temperature test range	0~1500℃
Combustion gas	98% propane gas
Power	AC220 (±10%) V/50HZ.
Size	L1100×W900 ㎜×H1200 ㎜

1. The timer error is not more than 1s/h.
2. Flame height: adjustable from 20mm ± 2mm to 175mm ± 1mm
3. Burning time: 0-999.9s±0.1s adjustable
4. Holding time: 0-999.9s±0.1s, automatic recording, manual pause
5. Flow pressure: with dual flow meters and pressure gauges (gas and air), rotameter. (Optional mass flow meter)
- Propane flow meter range: 650ML/min
- Air flow meter range: 10L/min
- Propane pressure gauge range: 0.25Mpa
- Air pressure gauge range: 0.6Mpa
6. Burner: Φ7mm ± 0.5mm, length about 100mm, 1KW pre-mixed blowtorch under 0.1MPA adjustable air source pressure, inner flame is 60±5mm,
The outer flame is 180±10mm, the side temperature at 95mm of the torch mouth rises from 100°C to 700°C, and the total time is 45±5s, then the torch is regarded as 1KW, and the temperature is completely acceptable.
To reach 1400°C
7. Test station: 2 stations (select devices of different sizes according to sample requirements)
8. Temperature control system: digital display temperature control meter, can record multiple sets of data at the same time, with temperature curve
9. Automatic alarm: 3 thermocouples on the front and back side of the sample measure temperature, and automatically alarm when the temperature reaches the specified temperature
10. Thermocouple: the outer diameter is not more than 3mm; the wire diameter is 0.5 mm, the accuracy is not less than class II, and the range is 1500℃. Thermocouple 0-1000℃ 2 sets
11. Sample size: L150*W50mm and 400*300mm samples with intact and undamaged surfaces
12. Combustion gas: 98% propane gas (in general, liquefied petroleum gas can be used instead of air source and gas source, the customer should prepare it)
13. Combustion box and bracket material: A3 steel plate electrostatic sprayed box, bracket is 304 stainless steel and sprayed plastic board
14. Test background: black background
15. Test process: automatic control of test procedures

4. Equipment placement conditions

- Ambient temperature 0℃～40℃
- Relative humidity ≤70%
- Power supply: AC 220V, tolerance ±10%, 50Hz
- There is no strong electromagnetic field interference source in the working room, no large amount of dust and corrosive gas, and good ventilation
