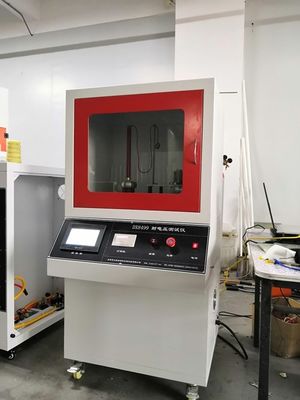

Wire and Cable Insulation Withstand Voltage Test Machine 220V

Wire and Cable Insulation Withstand Voltage Test Machine 220V
Wire and Cable Insulation Withstand Voltage Test Machine 220V
Wire and Cable Insulation Withstand Voltage Test Machine 220V Wire and Cable Insulation Withstand Voltage Test Machine 220V Wire and Cable Insulation Withstand Voltage Test Machine 220V Wire and Cable Insulation Withstand Voltage Test Machine 220V Wire and Cable Insulation Withstand Voltage Test Machine 220V

Large Image :  Wire and Cable Insulation Withstand Voltage Test Machine 220V

Product Details:
Place of Origin: China
Brand Name: DAXIAN
Certification: GB/T7106
Model Number: DX8499
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 30 sets per month
Contact Now

Wire and Cable Insulation Withstand Voltage Test Machine 220V

Description
Name: Insulation Withstand Voltage Tester 220V Standards: GB4706.1
Rated Voltage And Power: AC380V 50Hz 20KW Use Space: 350×160×300 Mm
Output Power: AC: 600VA DC: 300VA Warranty: 12 Months
Highlight:

Withstand Voltage Test Machine

,

Cable Insulation Test Machine

,

220V Wire Insulation Test Machine

Insulation Withstand Voltage Tester 220V



【Test items】

This tester is mainly used in the ultra-high withstand voltage test of household appliances, wires and cables, instruments and meters, the ultimate withstand voltage test of insulating materials, and the polarization of electro-acoustic equipment.


Standard:

GB4706.1

Technical parameters:


1. Breakdown current: AC 0～20mA ±5%, arbitrarily set
                                    DC 0～10mA ±5%, arbitrary setting
2. Output waveform: 50Hz sine wave or DC
3. Time control: 1～99(s)±5% manual control∞

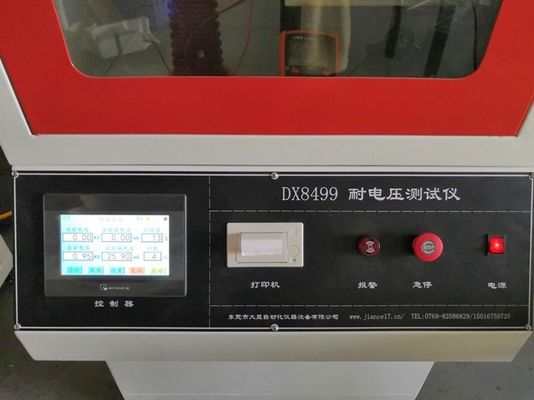

4. Display mode: full digital display
5. Test judgment: pass/fail, unqualified sound and light alarm
6. Environmental requirements: relative humidity ≤75%RH, ambient temperature 0～40℃
7. Power: static power consumption＜30VA
8. 3: plus booster part
9. Weight: about 35kg

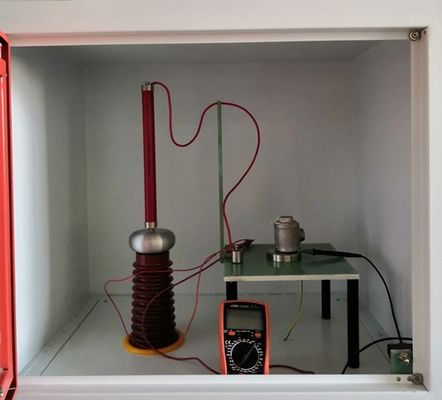

Test voltage AC/DC 0～30 (kV) automatic boost
Voltage accuracy 5.0kV～30kV ≤±5%
Leakage current range AC 0～20(mA) DC 0～10(mA)
Leakage current error ≤±5%
Output power AC: 600VA DC: 300VA
Size (W×H×D) 350×160×300 mm





Wire and Cable Insulation Withstand Voltage Test Machine 220V 0
