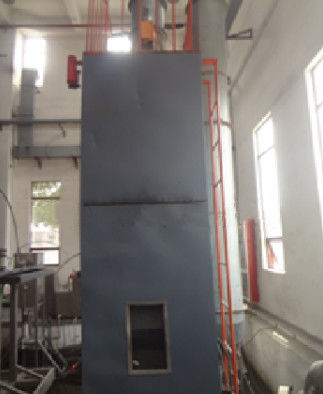

Power Transformer Combustion Test Chamber

Function configuration:

1. The dimensions and technical indexes of each part of the equipment meet the requirements of  IEC 60076-11:2004, mod
2. The combustion chamber and its components and materials are made of 304 stainless steel, with the inner dimension of 1m × 2m × 4m, and the outer frame is wrapped with a single layer
3. Radiant panel area (500 × 800) mm, power 24 kW (movable)
4. The inlet flow rate is 0.21 × (1 ± 15%) m3 / s, and a constant temperature device with high power meeting the standard requirements is equipped. The temperature is equipped with refrigeration and heating functions, and the temperature is controlled at 20 ± 2 ℃
5. The light transmittance of smoke measurement is 0-100%. The Φ 45 high-sensitivity solar cell is selected as the receiver. The smoke measurement system can automatically calculate, calibrate, and test data can be collected and stored in real time
6. The weighing range is 2000 kg, the weighing accuracy is less than ± 0.5%, with electronic display function (the weighing range can be selected by users)
7. The equipment is controlled by modular single chip microcomputer, operated by computer, and data reference can be set by itself
8. The use area of the equipment is length ≥ 2.5m × depth ≥ 5m × height ≥ 9m
9. The total power consumption is 28 kW (including 3 kW thermostatic device)

Technical index:

1. Test time: 0-120min (settable)
2. Weighing range: 0-2000kg
3. Weighing accuracy: ≤± 0.5%
4. Transmittance: 0-100%
5. Transmittance accuracy: 3%
6. Overall dimension of combustion chamber: length 1200 × depth 2400 × height ≈ 9000 (mm)
7. The materials inside and outside the combustion chamber, including the exhaust pipe, are 304 stainless steel with a thickness of 2mm
