AC 220V Tracking Index Tester

Large Image : AC 220V Tracking Index Tester

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Certification:	ASTM D2303，IEC60587-2007
Model Number:	DX8427

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10 sets per month

Contact Now

AC 220V Tracking Index Tester

Description

Usage:	Plastic, Silicone Rubber, Polymer Materials Flammability Tester	Standards:	ASTM D2303, IEC60587-2007
Drop Height:	30mm ~ 40mm Adjustable	Test Voltage:	100~6000V Adjustable
Power:	AC 220V/50HZ	Delivery Time:	10 Work Days
Highlight:	50Hz Tracking Index Tester , AC 220V Tracking Index Tester , ASTM D2303 Tracking Index Tester

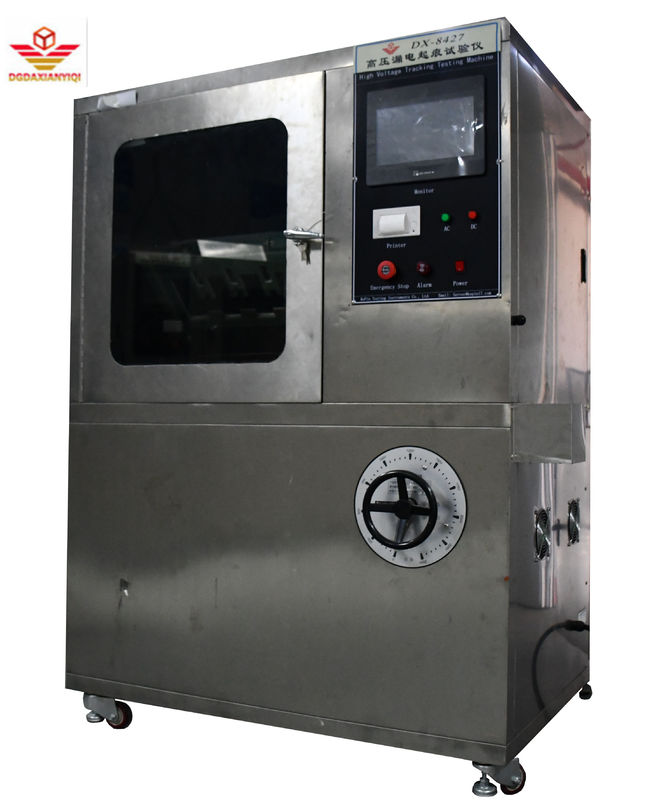

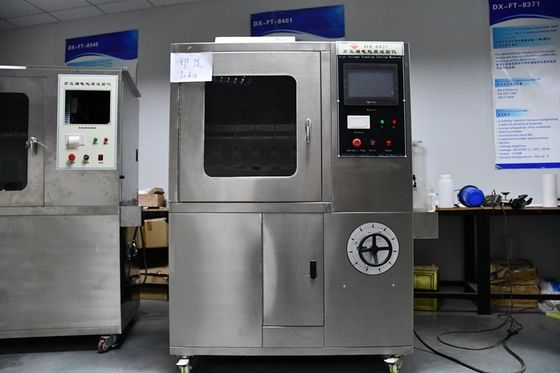

IEC60587 6 KV Automatic High Voltage Tracking Index Test Apparatus

Technical Description:

This product is used in electrical products under the influence of moisture and impurity environment, between the different polarity of the live parts or between the live parts and the grounding metal parts may cause insulation on the leakage, the resulting arc caused by electrical breakdown of the electrical or due to Discharge causes the material to erode and even ignite the fire.

Standard:

IEC60587-2007, ASTM D2303

Parameters:

Name	High Voltage Tracking Index Tester
Box	≥ 0.5 cubic meters
Drop size	44 to 50 drops / cm3
Power supply	AC 220V, 50Hz
Electrical load	100 ~ 6000V adjustable
Drip height	30mm ~ 40mm adjustable
Electrode Pressure	1.00N±0.05N
Flow range	0.00185 to 2 ml / min
Working speed	0.1 to 15 rev / min
Station	5 groups

Attention:

1. The solution should be used on the same day, but it can't be used for a long time. If the solution is used for a long time, it will deteriorate and affect the experimental results.

2. During the test, harmful gases will be produced, which need to be discharged out of the room by exhaust pipe fan.

3. This equipment is a high-voltage equipment, the operator needs to know the safety operation manual of the equipment before use.
