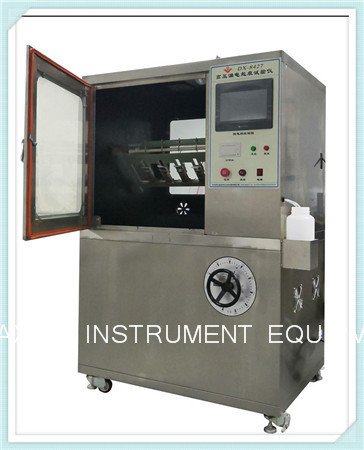

DX8427 Tracking And Erosion Test Machine

IEC60587 Electrical Tracking Mechanism ASTMD2303

Model: DX8427

Technical Description:

Inclined-plane Tracking Test；
A laboratory test for tracking and erosion resistance of HV outdoor insulation；
High voltage inclined-plane tracking test for electric vehicles；
Insulating performance evaluation-Tracking resistance and Erosion resistance test；

Standard:

IEC60587-2007,    ASTMD2303.

Parameters:

Performance Index:
a. Instrument Dimensions: 1500L*1050W*2000H (mm);
b. Operationg Room Size: 1100L*900W*950H (mm);
c. Electrode: thickness: 0.5mm; material: stainless steel;
d. Gape of Electrade: 50.0mm±0.1；
e. Testing Voltage: AC: 0V-6000V no rate adjustable;
DC: 0V-8400V no rate adjustable;
f. Testing Voltage power: 6000W;
g. Liquid Flow Range: 0.0016-1.5ml/min optional setting;
h. Dropping liquid Precision: 0.5%;
i. Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;
g. Testing time: 0-10 hours, setting freely;
