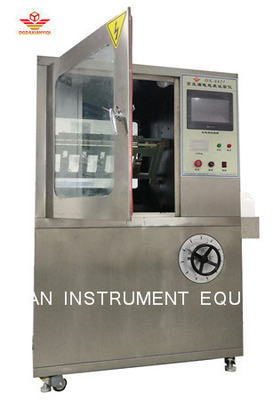

High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W

High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W
High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W
High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W

Large Image :  High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: IEC60587， ASTMD2303
Model Number: DX8427
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Five sets per month
Contact Now

High Voltage Inclined Plane Tracking And Erosion Test Equipment 6000W

Description

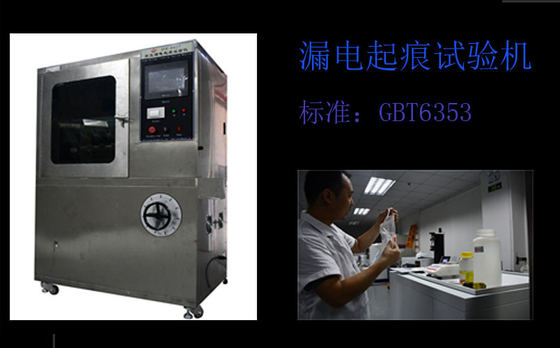

Product Name: Inclined-Plane Tracking And Erosion Test Equipment Standards: IEC60587， ASTMD2303
Dimensions: 1350L* 750W* 1800H (mm) Test Time: 0-10 Hours
Power Supply: 6000W Warranty: 12 Months
Highlight:

High Voltage Inclined Plane Tracking

,

Inclined Plane Tracking Equipment

,

6000W Inclined Plane Tracking

Main product categories:



Inclined-plane Tracking Test:



A laboratory test for tracking and erosion resistance of HV outdoor insulation；

High voltage inclined-plane tracking test for electric vehicles；

Insulating performance evaluation-Tracking resistance and Erosion resistance test；



Polymer materials used under severe outdoor conditions；

Insulating materials；



Combustion, environment, mechanics and other test instruments, for wire and cable, plastics, building materials, electrical appliances and other industries.





Standard:



IEC60587, ASTMD2303.





Technical parameters:



Dimensions 1350L* 750W* 1800H (mm)
Working room volume 800L *750W* 850H (mm)

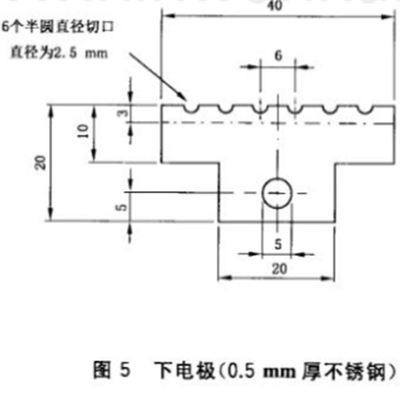

Electrode 0.5mm thick ,material: stainless steel
Test voltage

AC 0v-6000v stepless adjustable

DC 0v-8400v stepless adjustable
Power supply 6000W
Liquid flow range 0.016-1.5ml/min can be set arbitrarily
Dropping accuracy 0.5%
Test time 0-10 hours can be set arbitrarily




Main products:



HDI current resistance testing equipment, fire and flame retardant testing equipment, wire and cable testing equipment, environmental testing equipment, building material testing equipment, polymer material testing equipment and other five categories of products, technology research and development can be customized.
