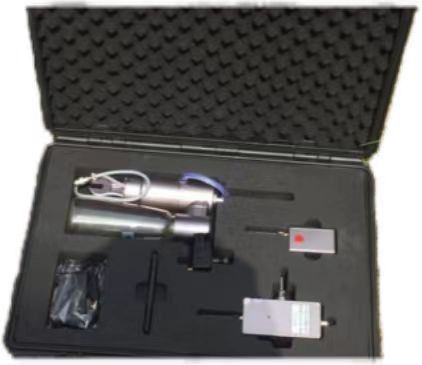

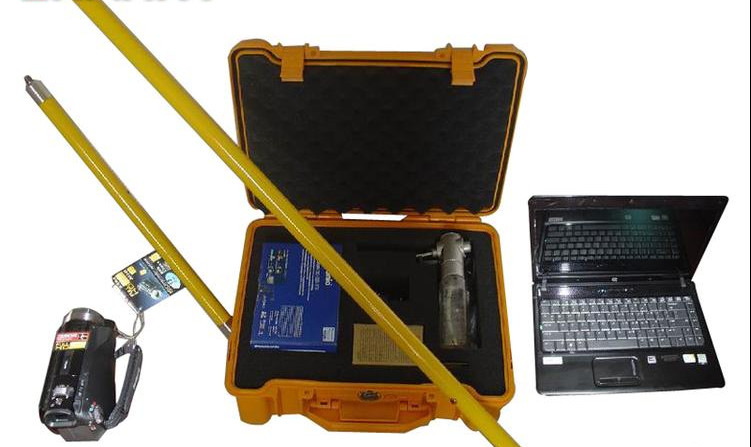

DX8436 Composite Insulator Hydrophobicity Test Device

DX8436 Composite Insulator Hydrophobicity Test Device

1,Applicable scope:

The composite insulator hydrophobicity live detection instrument is a new product for online detection of insulator hydrophobicity. Suitable for online detection of the hydrophobicity status of composite insulators in transmission lines with voltage levels of 110kV and above, as well as for hydrophobicity testing experiments and factory inspections of various composite insulators and silicone rubber. It is also suitable for hydrophobicity testing of RTV coating materials for magnetic insulators.

2,Detection principle:

Determine the hydrophobicity status of composite insulators based on the water spray classification method of the Swedish Transmission Research Institute (STRI). Based on advanced digital image processing technology, the hydrophobicity status of composite insulators is objectively judged by extracting grayscale information such as information entropy, seed rate, spectral amplitude mean, shape coefficient and area percentage of water droplets or water traces from hydrophobic images.

3,Compliant with standards:

Compliant with IEC 62073_ TS 62073-2016 "Guidelines for Measuring the Surface Wettability of Insulators" and DL/T864-201 "Guidelines for the Use of Composite Insulators for AC Overhead Lines with a nominal voltage higher than 1000V" test standard requirements.

4,Product function:

Live detection of hydrophobicity of various composite insulators

Testing the hydrophobicity of silicone rubber and RTV spraying materials

Automatically and accurately analyze hydrophobicity levels

Record various data and graphics for each detection

It is possible to query the inspection records of each time and string of insulators

Automatically determine the development trend of hydrophobicity

Analyze and judge the resistance to pollution flashover and moisture flashover performance

Provide scientific basis for maintenance and selection

5, Product features:

Using the water spray classification method (HC classification method)

Online detection, not involve power interruption

The device is compact, easy to carry, and convenient for field operations

Combining experience with scientific judgment

Simple operation and accurate judgment

High electrical safety performance
