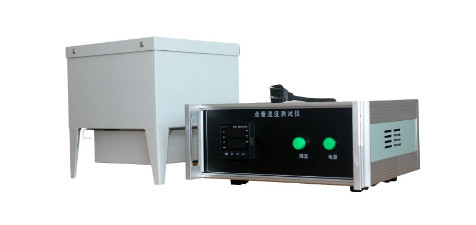

DX8602 Plastic Ignition Temperature Tester

DX8602 plastic ignition temperature tester

Introduction:

DX8602 ignition temperature tester is designed and manufactured in accordance with GB4610-2008 "Determination of ignition temperature by plastic hot air furnace method" and GB/T9343-2008 "Determination of flash ignition temperature and self ignition temperature for plastic combustion performance test methods". It fully complies with GB4610-2008 and also meets the requirements of ISO871-2006 standard, and is used to assist in testing the combustion and flame retardant properties of plastic materials

Product Description:

Alternate name: GB4610-2008 Spark Temperature Tester

GB/T9343-2008 Plastic Hot Air Furnace Method Spark Temperature Tester

DX8602 ignition temperature tester is designed and manufactured in accordance with GB4610-2008 "Determination of ignition temperature using plastic hot air furnace method" and GB/T9343-2008 "Determination of flash ignition temperature and spontaneous ignition temperature for plastic combustion performance test methods". It fully complies with GB4610-2008 and also meets the standard requirements of ISO871-2006, and is used to assist in testing the combustion and flame retardant properties of plastic materials.

Compared with the GB4610-1984 standard, the 2008 standard eliminates the term ignition temperature and adds flash ignition temperature, spontaneous ignition temperature, and scorching combustion. The test calculation results are changed to flash ignition temperature and spontaneous ignition temperature. The testing instruments required in the 2008 version have also undergone significant changes compared to the original standard.

Concepts related to experimental results:

Flash ignition temperature (FIT): The lowest temperature at which sufficient flammable gas is ignited under specified test conditions when a flame is applied.

Self ignition temperature (SIT): The lowest temperature at which a flame is ignited by heating under specified test conditions without any ignition source.

Glowing combustion refers to the combustion in which there is no flame in the solid phase of a material, and the combustion area is accompanied by a luminous phenomenon.

Test principle of DX8602 ignition temperature tester:

In the heating chamber of the hot air furnace, different temperature heating styles are used, and a small flame is used to directly ignite the escaping gas at the opening above the furnace to determine the flash ignition temperature. The self ignition temperature was measured using the same method as the flash ignition temperature, but no flame was applied.

The main technical parameters of the DX8602 ignition temperature tester are:

Customized ceramic tubes with an inner diameter of 100mm ± 5mm, a length of 240mm ± 20mm, and a temperature resistance of not less than 750 ℃;

The inner diameter of the inner tube is 75mm ± 2mm, the length is 240mm ± 20mm, and the temperature resistance is not less than 750 ℃;

The flame height of the butane igniter can be adjusted arbitrarily from 10mm to 20mm;

The temperature inside the furnace can remain constant at any temperature between (150-750) ℃;

Equipped with a flow meter to accurately control gas flow rate;

The insulation layer is composed of insulation mineral wool with a thickness greater than 60mm, and is wrapped with stainless steel on the outside;

Three thermocouples and temperature instruments are used to detect the temperature inside the furnace and the temperature of the sample;

The sample container is made of stainless steel;

Timer accuracy of 0.01s, time recording range: 0-999.9S (preset);

Automatic temperature control program;

Environmental temperature: room temperature~40 ℃; Environmental humidity: ≤ 75%;

Working voltage: AC 220 V±10V 50Hz; Operating power: 2500W;

Temperature control accuracy:±2℃, can be adjusted freely between 150℃ and 750℃;

Display accuracy: ±0.5 ℃;

Equipment dimensions: Test furnace400×250× 300, controller length 430×350×280mm

Equipment weight: 15Kg.
