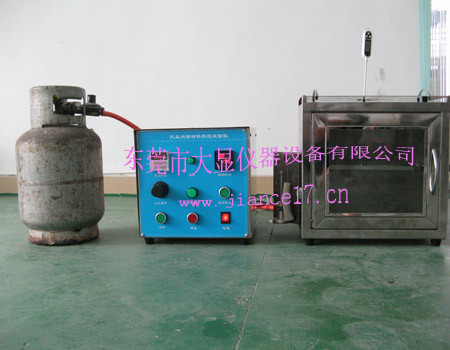

DX8337 Automotive Interior Material Combustion Testing Machine

Compliant with standards: Compliant with GB8410, American standard FMVSS571.302, and DIN7520 "Combustion Characteristics of Automotive Interior Materials".
Test method: Clamp the sample horizontally on a U-shaped bracket, ignite the free end of the sample with a specified height flame in the combustion chamber for 15 seconds, and determine whether the flame on the sample has extinguished, as well as the distance and time required for burning the sample at that distance.
Scope of application: Mainly applicable to single materials or laminated composite materials used in automotive interior materials and parts, such as seat cushions, seat backs, seat covers, seat belts, headrests, armrests, folding tops, all decorative lining panels, instrument panels, glove boxes, indoor cargo racks, or rear window sills, curtains, floor coverings
Technical parameters:
Combustor: Mirror stainless steel plate structure, steel plate thickness 1.2mm
Control box size: 300mm (length) * 270mm (width) * 360m (height)
Combustion chamber dimensions: width x height x depth: 385x 360x 204mm
There are 10 ventilation holes with a diameter of 19mm at the bottom, and ventilation grooves with a width of 13mm are located around the four walls near the top.
Test bracket: made of two U-shaped corrosion-resistant metal steel plates, with a length x width of 361x100mm
Control box: Burning time: 0~99.99/S/M/H, can be set arbitrarily
Burning time: 0~99.99/S/M/H can be set arbitrarily
Shutdown time: 0~99.99/S/M/H can be set arbitrarily
Combustion lamp: nozzle inner diameter: 9.5mm
Gas source: Gas (provided by the customer)
Flame height: 38mm
Metal comb length: 110mm, with 7-8 smooth crenation per 25mm
Steel ruler: length 400mm, accuracy 1.0mm
