DX8516 Mining Cable Load Combustion Testing Machine

Large Image : DX8516 Mining Cable Load Combustion Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Certification:	MT 386-1995
Model Number:	DX8516

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	15 sets per month

Contact Now

DX8516 Mining Cable Load Combustion Testing Machine

Description

Scope Of Application:	Is Used To Test The Combustion Characteristics Of MT 818-2009 "Flame Retardant Cables For Coal Mines" Under Overload Conditions	Standard:	MT 386-1995
Combustor Size:	L1100× W900 × D525mm	External Dimensions Of Combustion Chamber:	1750 ×1100× 500mm
Gas:	Natural Gas Or Synthetic Methane (methane Content Should Be Above 95%)	Working Voltage:	AC 380V ± 10% 50HZ
Total Weight:	250KG
Highlight:	DX8516 Load Combustion Testing Machine , Mining Cable Load Combustion Testing Machine

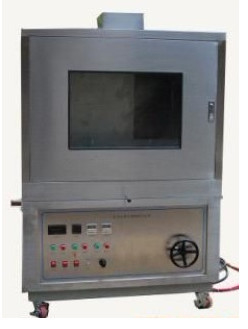

DX8516 Mining Cable Load Combustion Testing Machine

DX8516 Mining Cable Load Combustion Testing Machine 0

This testing machine is manufactured according to the standard MT 386-1995 "Test methods and determination rules for flame retardancy of flame retardant cables for coal mines", and is used to test the combustion characteristics of MT 818-2009 "Flame retardant cables for coal mines" under overload conditions.

Main parameters:

1. Combustor size: L1100× W900 × D525mm

2. External dimensions of combustion chamber: 1750 ×1100× 500mm

3. Load current: 0-3000A continuously adjustable

4. Adjustable nozzle height, nozzle angle: 90 °

5. Temperature measurement range: K-type thermocouple 0-1200 ℃

6. Temperature control meter display range: 0~999.9

7. Temperature control meter accuracy: 0.5 level

8. Timer range: 0-99.99S/m/H

9. Volume: 0.5m³, with exhaust device

10. Gas: Natural gas or synthetic methane (methane content should be above 95%)

11. Working voltage: AC 380V ± 10% 50HZ

12. Total weight: 250KG
