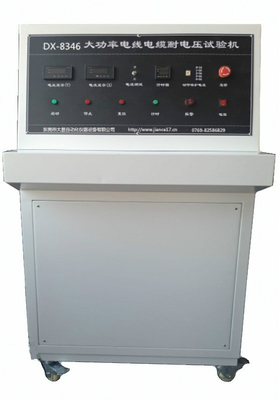

DX8346 High Power Wire And Cable Withstand Voltage Tester

DX8346 High Power Wire and Cable Withstand Voltage Tester

1. Usage:

Suitable for high voltage test of motor, household appliances, instruments, electronic devices, insulation materials, and wires and cables. When the power frequency withstand voltage test of wire and cable is carried out, because of the large capacitance between the electrodes and the large capacitance current when the processing frequency voltage is applied, a large capacity transformer is needed. The larger the cable, the longer the cable and the larger the capacitance, the greater the transformer capacity required. When the maximum test voltage of the press is 5kV, it can withstand capacitance current below 5A, and the capacity can reach 25kV.

2. Technical parameters:

1. Input voltage: AC 220V 50Hz

2. Output test voltage: AC 0 ~ 5kV 50Hz

3. Accuracy: ± 5%

4. Transformer capacity: 25kVA

5. Output current: up to 5A

6. Action current: set 1A, 2A, 3A, 4A, 5A five gears

7. Test time: 1 ~ 999s adjustable

8. Dimensions: 800×700×1650mm

3. Conditions of use:

1. The altitude shall not exceed 1000 meters.

2. The ambient humidity does not exceed +40°C and is not lower than -10°C.

3. The maximum relative humidity of the air is 85%.

4. It needs to be installed in the place where there is no explosive gas, no rain and snow, no strong vibration and dryness.
