High Precision DX8440 Wire Winding Torsion Tester

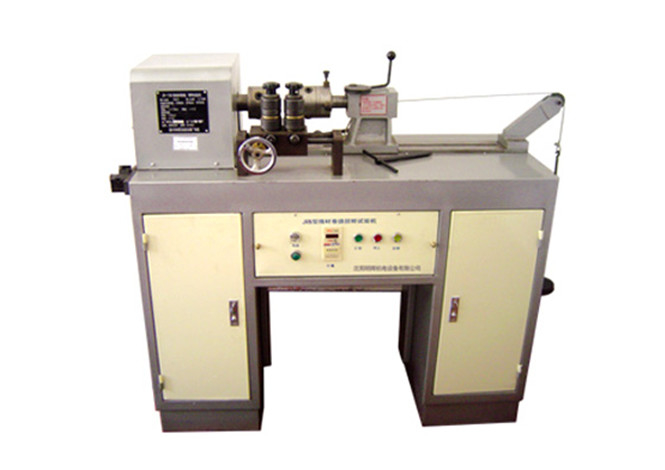

DX8440 wire winding torsion tester

Product Introduction: Mainly suitable for conducting torsion and winding tests on copper rods, aluminum rods, and steel wires at the specified torsion speed. It can also be applied to the twisting strength of various metal wires and the number of times the paint film of enameled wires can withstand twisting.
Test method: The test method is to clamp both ends of the test piece and fix one end in place, while continuously twisting the other end 360 º back and forth until the test piece breaks or the paint film on the enameled wire peels off, exposing the conductor, and recording its resistance to twisting.
Compliance with standards: Meet the requirements of GB4909.4-2009 and GB4909.7-2009 test standards.
Technical parameters:
Sample diameter range: copper rod φ 8mm or less, steel wire Ф Below 3mm
Torsion speed range: (10, 30, 60) r.min
Clamp spacing: 0-500mm
Fixture action: chuck type
Winding range: aluminum wire, Ф 3mm to 6mm using a core rod, It is recommended to manually wind steel wires below Ф3mm; Below Ф4mm
Core rod range: φ1mm,φ2mm,φ3mm,φ4mm,φ5mm,φ6mm,φ8mm,φ10mm,φ12mm,φ14mm,φ16mm
External dimensions:1400mmx530mmx1100mm
Power supply: AC 220V 50/60Hz 4A
1,Torsion test section
1. Power: DC/1HP
2. Fixture actuation: chuck type
3. Clamp spacing: 0-500mm
4. Speed: 6~60 r/min, can be set arbitrarily
5. Rotation times: 0-999999, can be set arbitrarily
6. Applied load:5Kg,10Kg,15Kg
7. Volume (W×D×H)130×55×100cm
2, Winding test section:
1. Core rod diameter: ¥1.25～¥19.00mm
2. Sample diameter: aluminum wire ¥ 1.25-¥ 6.00mm, steel wire ¥ 1.25-¥ 3.80mm
3. Spindle speed:≤8r/min, right shaft head displacement distance: ≥ 40
4. Motor: Power 0.75KW
5. Weights: 10Kg, 5Kg, 2Kg, 1Kg
This machine is a testing machine for testing the toughness and adhesion performance of steel aluminum wires, meeting the requirements of GB/4909.7 "Test methods for bare wires - winding test". A testing instrument used for winding and twisting aluminum wire, steel wire, steel rod, and steel core aluminum stranded wire.
