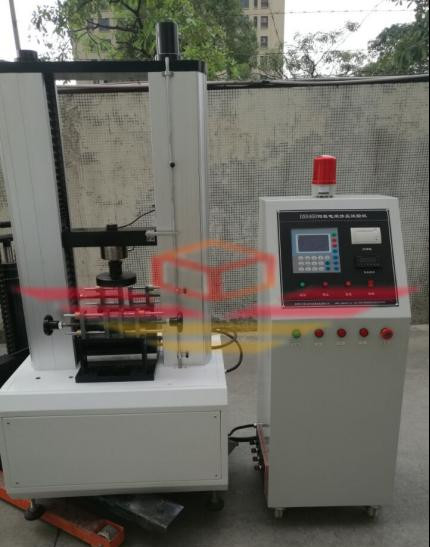

DX8466 Servo Cable Extrusion Testing Machine

1, Applicable scope:
The performance of the servo cable anti extrusion testing machine is mainly applicable to the anti extrusion performance of mining cables below UC-0.66KVT and UCP-1.14KV.
2, Compliant with standard: Meets the requirements of GB12972 test standard.
3, Technical parameters:
1. Maximum measurement load: 200N.
2. Load resolution: 0.01N.
3. Maximum stroke: 600MM.
4. Testing speed: 50~500MM/MIN continuously adjustable.
5. Test voltage regulation: 0-1.5KV adjustable.
6. Automatic stop function: In case of short circuit or open circuit of the sample, the power will be cut off and the movement of the crossbeam will automatically stop (or return to the initial position).
7. It has two levels of limit protection: programmable and mechanical.
When the load exceeds the rated value by 3-5%, the machine will automatically shut down.
9. Equipment weight: 60Kg.
10. Power supply: 220V, 50Hz, 500W.
