1, Compliant with standards:

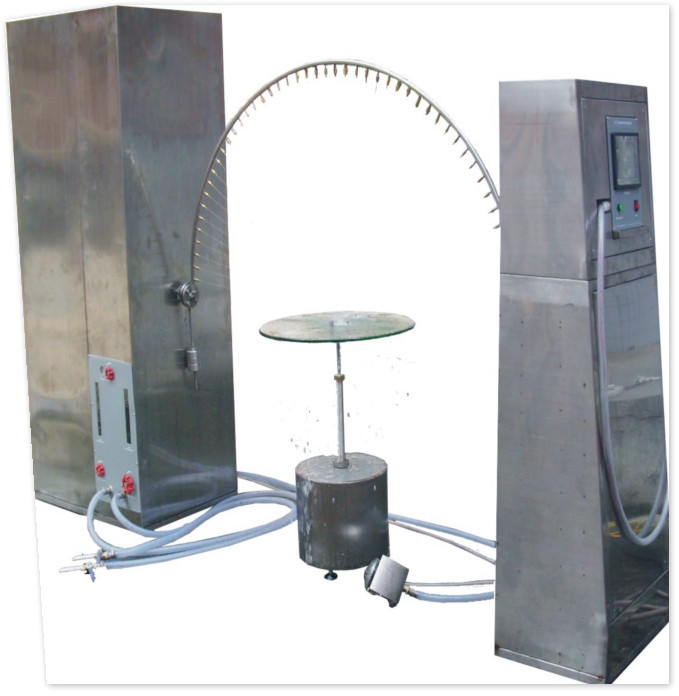

The rain test equipment GB4208-93, GB10485, GB2423,38-90, GB4706.32-2004, IEC60529-2001 "Housing Protection Level (IP Code)" is designed and manufactured, suitable for conducting waterproof tests on electrical products with the second characteristic number of 3 and 4 (IPX3, X4).
2, Main technical parameters of equipment hardware
1. The voltage used by the equipment is AC 220V ± 10%; Frequency: 50Hz ± 5%
2. Pendulum size: R=1200mm, suitable for sample size 1300 * 800 * 800mm for product use
3. Pendulum material: SUS304 stainless steel (outer diameter ≥ 19mm, wall thickness ≥ 2mm);
4. Drip aperture: ¥ 0.4mm, number of openings: IPX3, 50 openings, IPX4, 75 openings
5. Total water flow rate: IPX3:3.5L/min; IPX4:5.3L/min
6. Nozzle angle: 120 degrees (IPX3), 180 degrees (IPX4)
7. The angle conversion between IPX3 and IPX4 can be disassembled and replaced, (perform method a test in Level 3 and Level 4 waterproofing)
8. Swinging angle of 120 degrees (IPX3), 360 degrees (IPX4)
9. Water volume adjustment range: ≥ 0-10L/min (adjustable)
10. The swinging time (2X120 degrees) during the PX3 test is 4 seconds; The swinging time (2X180 degrees) during the IPX4 test is 12 seconds
11. Each spray hole has a flow rate of 0.07L/min (adjustable), and the flow meter displays direct reading
12. Test time: 0-999min (adjustable)
13. Rotary table diameter: ≥ 1600mm (height adjustable); Turntable bearing capacity: ≥ 200kg
14. Rotary table speed: can be set
15. The water flow rate can be directly displayed; Water spray pressure can be directly read by a pressure gauge or electronic display
16. PLC+stepper motor+touch screen (PLC+stepper motor+touch screen control system: the swing angle, swing speed, and testing time can be directly set on the touch screen)
17. After the experiment is completed, it can automatically drain the accumulated water in the water pipe
18. Open column equipment, with all main materials made of SUS304 stainless steel
19. Provide a third-party verification certificate for the provided equipment.
