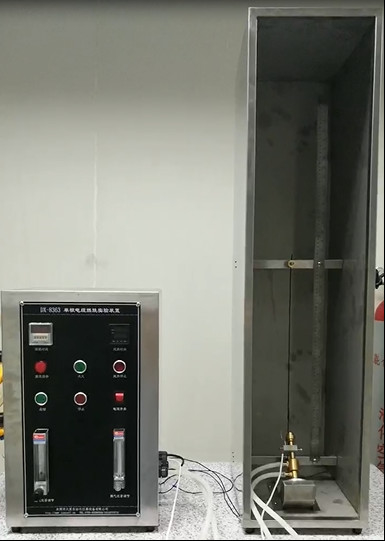

DX8363 Single Wire and Cable Vertical Flame Tester

Applicable scope:
Suitable for conducting vertical slow flame propagation tests on a single wire, cable or optical cable under specified flame conditions, and can also verify the combustion of droplets under flame conditions.
Compliant with standards:
Complies with the testing standards of GB/T18380.11-2008, GB/T18380.12-2008, GB/T18380.13-2008, IEC60332-1-1:2004, IEC60332-1-2:2004, and IEC60332-1-3:2004.
Main parameters:
1. Metal cover: All stainless steel box, with an internal chamber height of 1200mm, width of 300mm, and depth of 450mm. The front is open, and the top and bottom are closed.
2. Spray lamps: GB/T18380.11-2008, GB/T18380.12-2008, GB/T18380.13-2008, IEC60332-1-1:2004, IEC60332-1-2:2004, and IEC60332-1-3:2004 use spray lamps with a nominal power of 1kw. Complies with GB/T5169-14 standard. GB/T18380.21-2008, GB/T18380.22-2008, IEC60332-2-1:2004, and IEC60332-2-2:2004 use propane spray lamps (diffusion flames).
3. When the set combustion time reaches the preset time, the machine will automatically stop ignition.
4. Igniter: for automatic high-pressure ignition.
5. Fuel: Gas, methane, with a purity of over 95% (to be provided by the user)
6. Air flow meter: 10L/min, gas flow meter 650mL/min, one each
7. One set of temperature measurement device
