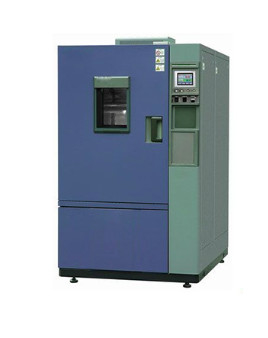

DX8790 Sulfur Dioxide Test Chamber For Precise Environmental Testing

Reference standard: GB/T9789-2008 Sulfur dioxide corrosion test for metallic and other non-metallic organic coatings under normal condensation conditions
Random materials: certificate of conformity, warranty card, circuit diagram
Instruction manual: operating methods, precautions, basic accessories for shipment, maintenance and repair matters
Safety protection devices:
Test box: Over temperature protection, overall equipment timing
Other: leakage protection, short circuit protection, water shortage alarm
Sulfur dioxide concentration control:
Gas concentration is controlled by a measuring buoy
The airway is connected using corrosion-resistant silicone tubing
The waste discharge machine adopts a centrifugal plastic fan
The exhaust gas is filtered with activated carbon and soda ash, and then discharged outdoors by an exhaust fan
Heating system:
Heating structure: Adopting a far-infrared nickel chromium alloy high-speed heating electric heater, the high temperature is completely independent of the system, and the temperature control output power is calculated by a microcomputer to achieve high precision and high efficiency in electricity consumption
Studio size: 600 * 550 * 900MM
External dimensions: 1050 * 1180 * 1510MM

controller
Intelligent XMT7512D series
Thin film KEY BOARD button
Touch sensitive settings, digital and direct display
display resolution
Temperature: 0.1 ℃ (display range)
Time: 0.1min
Temperature sensor: PT100 platinum resistance thermometer
