Radiant Plate Flame Spread Tester Test The Flammability Of Building Surface Materials

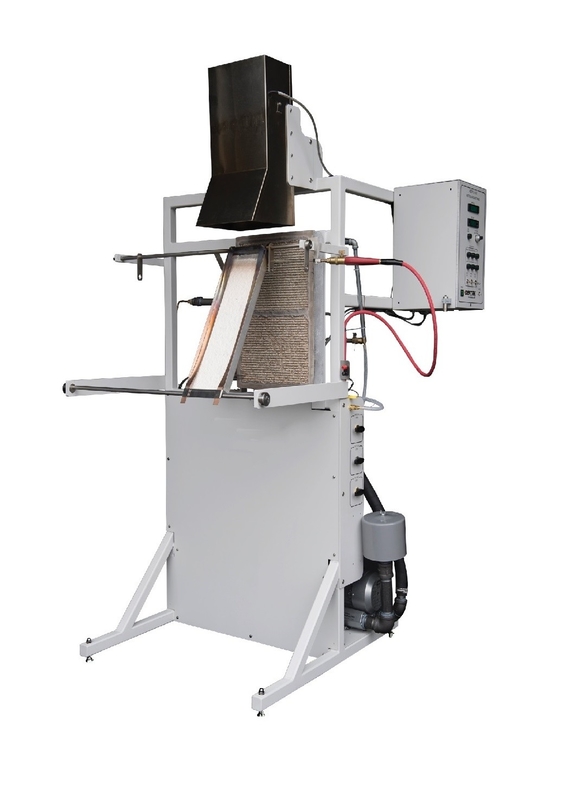

DX8335A Radiant Plate Flame Spread Tester

Product Introduction:

The Radiant Panel Flame Spread Tester uses gas-fired radiant panels to test the flammability of building surface materials (ASTM E162) and foams (ASTM D3675). The Flame Spread Index (IS), which is determined by factors such as flame spread and heat dissipation. It is used as a mandatory parameter in many industry norms, especially for public transport (trains and buses). Data acquisition and analysis are done automatically by the software.

Reference Standards:

ASTM E 162 Standard Test Method for Testing Surface Flammability of Materials Using Radiant Thermal Energy • ASTM D 3675: Standard Test Method for Testing Surface Flammability of Flexible Porous Materials Using Radiant Thermal Energy Sources

Product features:

• The frame structure is made of stainless steel; Beautiful and corrosion-resistant; The reflector is composed of a cast iron frame, the surface size of the reflector is 305X457mm, it is a porous fireproof material, and the working temperature is 815 °C;

• The filter is equipped with a fan to supply air to the reflector;

• The device has an ignition, electronic ignition, and automatic flame-out safety monitoring device;

• Stainless steel sample holder with observation points every 3 inches to observe the progress of the flame front;

• Pyrometer to determine the surface temperature of the radiant panel, including the bracket; Temperatures up to 815°C;

• Stainless steel sample holder and inducer burner device;

• Airflow meters, gas control valves, control the mixing of gases fed into the radiant panels;

• Stainless steel exhaust pipe with detachable part for easy cleaning of thermocouples, exhaust pipe equipped with 8 thermocouples according to standard;

• Calibrated burners with 1.8mm holes at 16 different angles along the centerline;

• In order to control the surface temperature of the reflector, it is necessary to set the blackbody temperature of 180 ° C ~ 230 ° C, accurate to ±5 ° C, suitable for observing the surface temperature of the reflector with a surface radius of 250MM from 2M away;

• Insulated thermocouple is attached to measure the temperature of the stack;

• Imported heat flux meter (round foil type) to test the thermal radiation of the radiant plate (0~100kW/m2);

• DAQ system for automatic control and measurement;

• Gas safety control and circuit cut-off device;

Control system:

1. Independent electrical control cabinet;

2. Standard control cabinet, computer + Labview intelligent control system;

3. The system test is intelligent and easy to operate;

4. Imported gas flowmeter to accurately control gas flow;

5. Automatic calibration of radiation and automatic control of experimental radiation amount;

6. The flow rate of the exhaust fan is 0.5m/s;

7. With computer, the experimental data is automatically saved.

8. Gas: industrial propane gas (provided by the user).
