Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials

Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials
Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials

Large Image :  Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: GB/T11785-2005
Model Number: DX8401
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 15 sets per month

Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials

Description
Standard: GB/T11785-2005 、ISO9239-1 Scope Of Application: Suitable For Testing Flooring Materials That Are Placed Horizontally
Measuring Range Of Heat Flux Meter: (0-15) Kw/m2 Combustion Gas: Propane Gas
Combustion Gas Flow: (0.026±0.002) L/S Power Supply Voltage: AC220V±10%, 50Hz
Maximum Power: 5KW Combustion Box Size: L1420*W1200*H2300(mm)
Control Box Size: Length * Width * Height (2.2* 1.2* 2.4) M Equipment Weight: 350Kg
Highlight:

Radiant Heat Flux Test Device

,

AC220V Radiant Heat Flux Test Device

DX8401 Radiant Heat Flux Test Device for Floor Covering Materials 12w

Radiant Heat Flux Test Device For Floor Covering Materials For Testing Flooring Materials 0

Scope of application:

It is suitable for testing flooring materials that are placed horizontally with small flame ignition under specified conditions and exposed to an inclined thermal radiation field. Suitable for all kinds of flooring materials. Such as: textiles, carpets, cork, wood, rubber sheets and plastic flooring and floor spraying materials. The device can react to the combustion properties of the paving material, including the substrate used, and changes in the backing material, the sublayer material or other aspects of the paving material may affect the test results, and it is used to test and describe the combustion characteristics of the paving material in pairwise thermal reaction to ignition under laboratory control conditions.

Conform to the standard: meet the requirements of GB/T11785-2005 and ISO9239-1 "Determination of Combustion Performance of Paving Materials - Radiant Heat Source Method".

Technical Parameters:

Measuring range of heat flux meter: (0-15) Kw/m2;

Heat flux meter accuracy: ±0.2Kw/m2;

Heat flux meter accuracy: <±3%;

Thermal radiation high temperature metering range: 400-600 °C, accuracy of ±0.5 °C;

Blackbody temperature error: ±5°C;

Smoke exhaust speed: (2.5±0.2) m/s;

Smoke exhaust capacity: (39-85) m3/min;

Porous refractory radiant plate size: 300mm×450mm, can withstand high temperature of about 900°C;

Thermocouple: K-type stainless steel armored thermocouple with a diameter of 3.2mm;

Heat flux distribution requirements: at 200mm: (9.1±0.4) KW/m2;

At 400mm: (5.0±0.4)KW/m2;

At 600mm: (2.4±0.2)KW/m2;

Combustion gas: propane gas (provided by the user);

Combustion gas flow: (0.026±0.002) L/S;

Burning blowtorch: outer diameter ¢10mm, inner diameter ¢6mm, 35 ¢0.7mm holes on the blowtorch tube;

Flame height: 60~120mm adjustable;

Ignition system: high-voltage electronic ignition;

Powerful exhaust system: This machine is equipped with a powerful exhaust fan, when the test is completed, start the exhaust fan system to exhaust the exhaust gas outside.

Control box/combustion box material: using high-quality (t=1.2mm) 304 stainless steel plate, CNC machine tool processing and forming, arc shape is beautiful and generous.

Blowtorch: made by our company, 304 stainless steel material, fully in line with the requirements of GB/T11785 standard.

Other mechanical parts are made of 304 stainless steel or A3 material thickened electroplating, anti-corrosion and anti-rust.

Power supply voltage: AC220V±10%, 50Hz;

Maximum power: 5KW;

Combustion box size: L1420*W1200*H2300(mm)

Control box size: length * width * height (2.2* 1.2* 2.4) m;

Equipment weight: 350Kg.

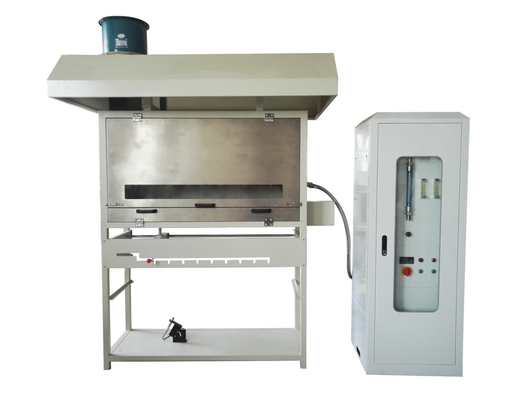

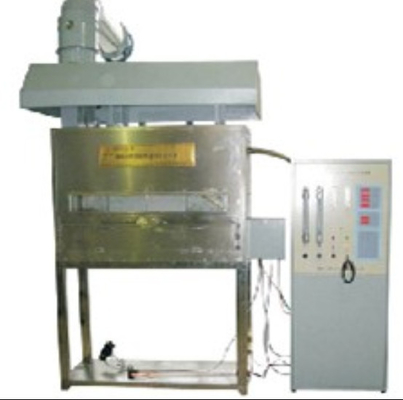

Equipment composition: It is mainly composed of two parts: combustion box and control box.

Main technical indicators:

The radiation box is tilted 30 degrees and can be adjusted

The inlet heat flux is measured by the inlet heat flux

The gas flow rate in the flue is (2.5±0.2) m/s

The water temperature was 15°C-25°C

The radiant flux of the 9 points of the radiant panel should meet the corresponding specifications (see standard requirements)

The exhaust fan is infinitely adjustable

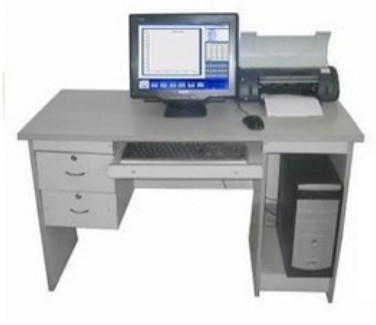

Features: Computer controlled; Automatic timekeeping; Printing of data processing records;

Timing accuracy: <1s/h;
