Insulation Material Volume Resistance Surface Resistance Testing Machine, Measuring The Insulation Resistance

Large Image : Insulation Material Volume Resistance Surface Resistance Testing Machine, Measuring The Insulation Resistance

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Certification:	ASTM D257-2007
Model Number:	DX8488

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	15 sets per month

Contact Now

Insulation Material Volume Resistance Surface Resistance Testing Machine, Measuring The Insulation Resistance

Description

Standard:	ASTM D257-2007，GBT 1410-2006	Scope Of Application:	Suitable For Measuring The Insulation Resistance Of High Resistance Insulation Materials, Electrical Products
Measurement Voltage:	10V, 25V, 50V, 100V (8500-9000), 250V, 500V, 1000V (1.3-1.4) Optional	Resistance Measurement Range:	0-2×10e17Ω. M
Power Supply:	AC220V 50HZ	External Dimensions:	500×350×250 (mm)
Weight:	15kg
Highlight:	Volume Resistance Testing Machine , Surface Resistance Testing Machine , Insulation Material Testing Machine

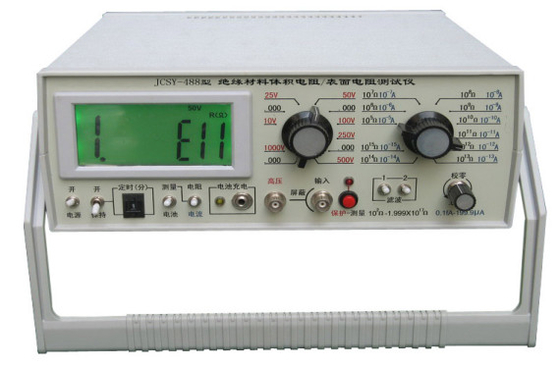

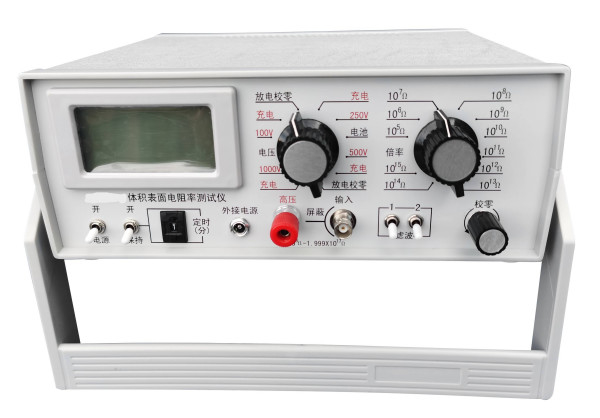

DX8488 Insulation Material Volume Resistance (Surface Resistance) Tester

Insulation Material Volume Resistance Surface Resistance Testing Machine, Measuring The Insulation Resistance 0

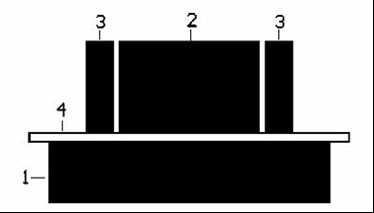

Volume resistance/surface resistance test electrode

(1) Back electrode (2) Inner electrode (3) Circular outer electrode (4) Tested sample

Suitable for measuring the insulation resistance of high resistance insulation materials, electrical products, various components, rubber and plastic used in wires and cables. The optional electrode box can measure the surface resistance and volume resistance of insulation materials.

Complies with the standards ASTM D257-2007 Volume Resistivity and GBT 1410-2006 Test Methods for Material Volume Resistivity and Surface Resistivity.

Main technical specification :

Measurement voltage: 10V, 25V, 50V, 100V (8500-9000), 250V, 500V, 1000V (1.3-1.4) optional

Resistance measurement range: 0-2×10e17Ω. m

Time setting: 0~99S adjustable

Power supply: AC220V 50HZ

External dimensions: 500×three hundred and fifty×250 (mm)

Weight: 15kg
