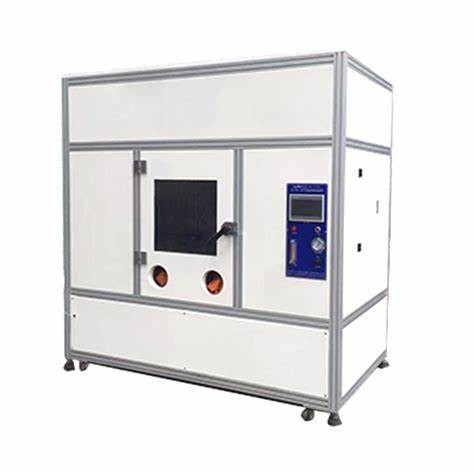

UL1581 Combustion Testing Machine, Vertical Horizontal Combustion Testing Chamber, Large Combustion Chamber

DX8382 large combustion chamber/UL1581 combustion testing machine/vertical horizontal combustion testing chamber

Compliant with standards:

We strictly follow the UL1581 section 1080.1-1080.14 standard for production and have been recognized by Guangzhou Meihua UL Company, meeting the VW-1 (V-ertical specific) Flame Test combustion test standard. Applicable to the VW-1 test standards of UL1581, UL13, UL444, and UL1655, as well as the FT-1 and FT-2 test standards of CSA. Economically applicable and widely used in the wire and cable industry.

Test method:

Adjust the flame height, place the top of the flame under the specimen, burn for 15 seconds, extinguish for 15 seconds, repeat 5 times, and check the burning condition of the specimen. The burning, extinguishing time, and number of repetitions can be set, and it can be operated automatically.

Parameter details:

The entire experiment was conducted in a sealed laboratory with a volume of 4.32 cubic meters.

1, Combustion chamber:

(1). Effective space: 2.4m (length) * 1m (width) * 1.8m (height)

(2). Boundary dimensions: 2.4m (length) * 1m (width) * 2.5m (height)

(3). Material:

External: Square steel frame structure, thickened 1.5mm steel plate electrostatically baked with deep green paint;

Internal: Electrostatic baked black paint.

(4). Observation window:

Two left and right sliding windows; The observation window is made of tempered glass;

Surrounded by SUS304 stainless steel edging;

Size: 730mm (height) * 420mm (width).

(5). Operation window: 4 in total

Inner space size:ф150mm;

Peripheral: Made of 3.0mm stainless steel edging;

Sealed as long arm leather gloves, with a length of 600mm;

Overall peripheral dimensions:ф220mm.

(6). Exhaust system:

Two spiral exhaust fans;

The sealing push-pull plate is made of 2.0mm stainless steel;

There are sliding grooves on both sides;

A set of remote control operation devices: a. Using two steel pull ropes. b. Two sets of pulleys

(7). Air inlet: 4 in total

Size:ф160mm;

The sealing push-pull plate is made of 2.0mm stainless steel plate;

There are sliding grooves on both sides.

(8). Bottom fixing bracket:

Dimensions: 2.4m (length)×1m (width)×0.7m (height);

Using 60mm× 60mm×4mm angle iron, electrostatically baked with dark green paint;

Foot pulleys: Six, 4 pulleys with locks.

9. .Lighting equipment: One anti fog and anti smoke circular lamp is used.

2, Control section

(1). One combustion indicator

(2). Combustion setting: Any setting from 0 to 99.99 seconds

(3). One shutdown indicator

(4). Shutdown setting: Any setting from 0 to 99.99 seconds

(5). Combustion count: 0-999999 times, set arbitrarily

(6). Equipped with fully automatic, combustion, shutdown, and counting functions

(7). Equipped with vertical/horizontal conversion function

(8). Equipped with automatic ignition function

(9). Equipped with manual/automatic switching function

(10). Ignite using high-pressure ignition method

(11). The experimental part is connected to the control using aviation plugs, which have very close contact.

3, Experimental section

(1). Nozzles:

(2). The angle is 20 degrees

(3). One internal flame regulating valve

(4). One external flame regulating valve

(5). One internal flame contact point marking ruler

(6). One low flag marking ruler

(7). One test length ruler

(8). One flame measuring device

(9). Test fixture: a. Material: Steel plate, finely processed and painted. b. Color: Pure black

(10). The test box is made of SUS304 stainless steel and finely processed

(11). Bottom of test stand:

a. Two 2.0mm steel plates.

b. Size: 700mm (length) × 450mm (width)

c. Color: Electrostatic baked black paint

(12). Independent design of vertical and horizontal tests

(13). Add a long arm push rod to the test box

(14). Three horizontal combustion marks.

4, Air source control:

(1). Gas: It is recommended to use methane (provided by the user)

(2). Flow meter: 1 (Dwyer VA20430 model from the United States)

(3). U-shaped tube pressure gauge: 1 piece (Dwyer Company 1230-36 type in the United States)

(4). One gas tee joint

(5). Tracheal: high-pressure trachea
