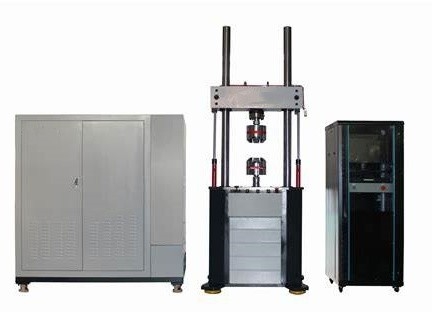

Servo Cable Extrusion Testing Machine For The Extrusion Resistance Of Mining Cables Below UC-0.66KVT

DX8466 Servo Cable Extrusion Testing Machine

1. Scope of application:

The performance of the servo cable extrusion resistance testing machine is mainly applicable to the extrusion resistance of mining cables below UC-0.66KVT and UCP-1.14KV.

2. Meet the standard: meet the requirements of the GB12972 test standard.

3. Technical parameters:

1. Maximum measured load: 200N.

2. Load resolution: 0.01N.

3. Maximun stroke: 600MM.

4. Test speed: 50~500MM/MIN continously adjustable.

5. Test voltage regulation: 0~1.5KV adjustable.

6. Automatic stop function: the specimen is short-circuited or broken, the power-off relay action, and the moving beam automatically stops (or automatically returns to the initial position).

7. It has program-controlled and mechanical two-level limit protection.

8. When the load exceeds the rated value by 3~5%, it will stop automatically.

9. Equipment weight: 60Kg.

10. Power supply: 220V, 50Hz, 500W.
