UV Accelerated Aging Testing Machine In The Evaluation Of The Material's Weather Resistance

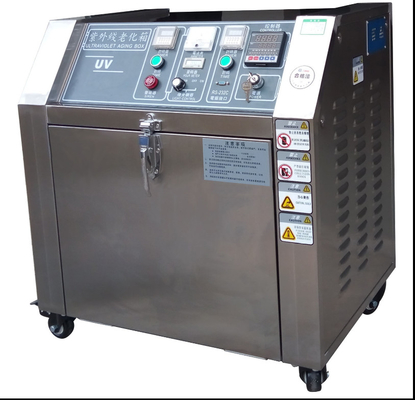

DX8494 UV Accelerated Aging Testing Machine

1. Overview of UV ultraviolet aging box

The fluorescent ultraviolet lamp with a spectrum similar to the UV segment in the sunlight, combined with the temperature control device to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause damage to the material such as discoloration, brightness, intensity reduction, cracking, peeling, pulverization, oxidation, etc., at the same time, through the synergistic effect between ultraviolet light and moisture, the single lightfastness or single moisture resistance of the material is weakened or invalidated, so that it is widely used in the evaluation of the material's weather resistance, and the equipment has the best sunlight UV simulation. It is low in maintenance cost, easy to use, automatic operation of the equipment by control, high degree of automation of the test cycle, good lighting stability, and high reproducibility of test results.

2. Structural timber system:

1. Inner box size: W1170×H500×D450 (non-standard size can be customized)

2. Dimensions: W1480×H1300×D550 (non-standard size can be customized)

3. Body material: SUS304# stainless steel plate.

4. Sample frame: aluminum alloy frame base frame sight plate

5. Controller: RKC intelligent controller

6. Irradiation lamp: 4 UVA-340 tubes

7. Power supply with leakage circuit breaker control loop overload short circuit alarm, over-temperature alarm, water shortage protection

3. Technical parameters of UV ultraviolet aging box:

1. Temperature range: RT room temperature ~ 70°C

2. Temperature uniformity: ±1°C

3. Temperature fluctuation: ±0.5°C

Humidity range: 20~98%RH Temperature deviation±3.0%RH(>75%RH)±5.0%RH(≤75%RH)

4. The distance between the center of the lamp: 70mm

5. The distance between the center of the test product and the lamp: 254mm±3mm

6. Irradiance: adjustable within 1.0W/m2

7. Light and condensation can be controlled separately

8. Lamp: L=1200/40W, 4 (UVA/UVB service life is more than 1600h)

9. Controller: RKC intelligent controller.

10. Temperature control mode: PID self-tuning SSR control

11. Standard specimen size: 76.2X50.8mm (larger specimens are also acceptable)

12. Effective irradiation area: 900X210mm

14. Ultraviolet wavelength: UVA range is 315~400nm;

15. Test time: 0~9999H (adjustable)

16. Irradiation blackboard temperature: room temperature ~ 70°C

17. Standard sample holder: The sample holder can adjust the distance between the sample and the lamp

4. Structural description:

1. The box is made of CNC equipment, advanced technology, smooth lines, beautiful and generous

2. The box is made of 1.2mm thick SUS304 high-grade stainless steel

3. The air duct in the chamber adopts a single-cycle system and has an imported axial fan, which improves the brightness of the air and the ability to heat up, and greatly improves the temperature uniformity in the test chamber

4. Lamp: special ultraviolet lamp, a total of 4 lamps in a single row, 40W/piece

5. Lamp life: more than 1600h

6. Install a total of 4 UVA lamps on the top of the studio

7. The lamp is a fast interface. It can be quickly disassembled and replaced

8. The heating method is heating with circulating air of the heating pipe, which heats up quickly and has uniform temperature distribution

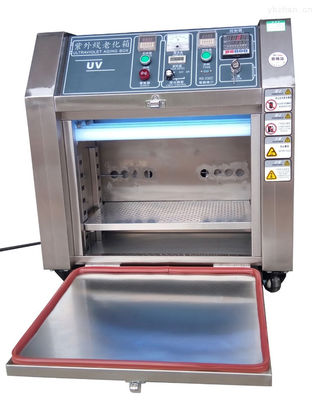

9. The lid is a two-way clamshell type, and it is easy to close

10. There is an over-temperature protection device inside, and the heating will automatically stop when the temperature exceeds it

11. The specimen holder is made of stainless steel

12. The surface of the sample is parallel to the plane of the ultraviolet lamp

5. Safety protection device for UV aging box:

1. Grounding protection

2. Power overload short-circuit circuit breaker

3. Control loop overload and short-circuit fuse

4. Over-temperature protection
