Rubber And Plastic Rolling Abrasion Testing Equipment For Surface Wear Resistance Test

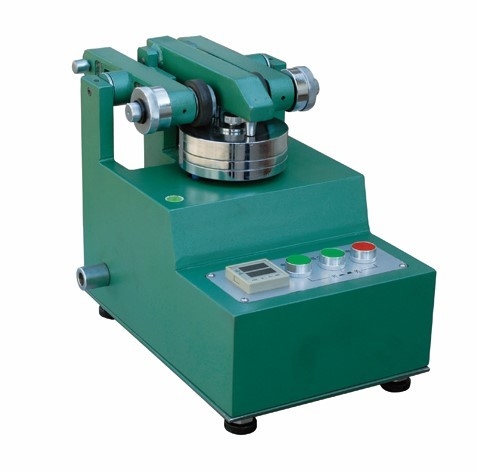

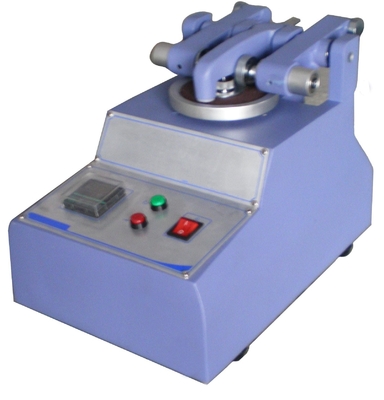

Rolling abrasion testing machine

1. Main uses:

Rolling wear testing machine is mainly used for surface wear resistance test of wood flooring and other non-metals. It can meet the requirements of the GB17657 "Test Method for Physical and Chemical Properties of Wood-based Panels and Veneer Wood-based Panels", and is an ideal testing equipment for quality inspection departments and production enterprises at all levels of wood-based panels.

2. Main technical specifications:

1. Test force: 5N

2. Test force accuracy: ±0.2N

3. Specimen rotation speed: 60±2r/min

4. Specimen size (mm): length = 110±2, width = 110±2

or diameter: Φ120±2

5. Dimensions (WxLxH): 240x350x310 mm

6. Weight: 25kg

3. The working conditions of the testing machine

1. In the range of room temperature 10~35°C, the relative humidity is not more than 80%;

2. Install it correctly on a solid foundation or workbench

3. In a vibration-free environment;

4. In a clean environment with no corrosive medium and no electromagnetic field interference;

5. The fluctuation range of power supply voltage is: AC220V±10%, 50Hz.
