Wire And Cable Two Three Wheel Bending Testing Device For Measuring The Mechanical Strength

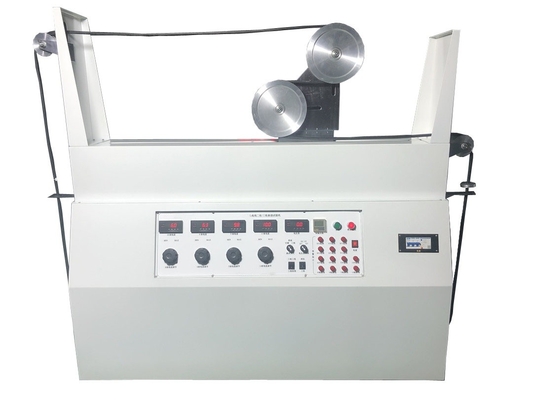

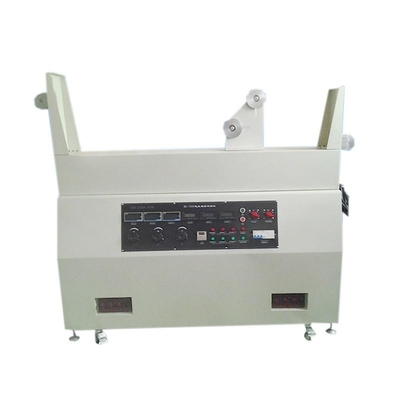

DX8393 Wire and Cable Two Three Wheel Bending Testing Equipment

1, Applicable scope:

Mainly suitable for measuring the mechanical strength of PVC insulated cables or rubber insulated and extra flexible wires with a rated voltage of 450/750V or below, and with two or more cores. Its performance and structure should meet the national standards of GB/T 5013.2-2008, GB/T 5013.8-2008, and GB/T 5023.2-2008. The instrument have the characteristics of novel appearance design, reliable performance and structure, convenient operation, dual use of one machine, and high accuracy of test data. Reserve RS232, RS485, or Ethernet universal communication interfaces for the output and retrieval of experimental data. IEC60227-2:2003

2, Main technical parameters:

1) Two rounds

• Power supply voltage: AC 380 V three-phase four wire.
• Motor power: 200 W.
• Car travel: ≥ 1 m.
• Car speed: 0.33 m/s (adjustable).
• Sample voltage: 180V/450V (adjustable).
• Sample length: 5000 mm.
• Sample current: 0-35 A (adjustable).
• Counting table: 15000 round trips can be preset.
• Pulley diameter: φ 60 φ 80 φ 120 φ 160 φ 200 (each with 2 flat grooves).
• Mass of heavy hammer: two each, 0.5 kg, 1.0 kg, 2.0 kg, 3.0 kg, and 4.0 kg.

2) Three wheeled

• Power supply voltage: AC 380 V three-phase four wire.
• Motor power: 200 W.
• Car travel: ≥ 1 m.
• Car speed: 0.1 m/s (adjustable).
• Sample voltage: 180V/450V (adjustable).
• Sample length: 5000 mm.
• Sample current: 0-35A (adjustable).
