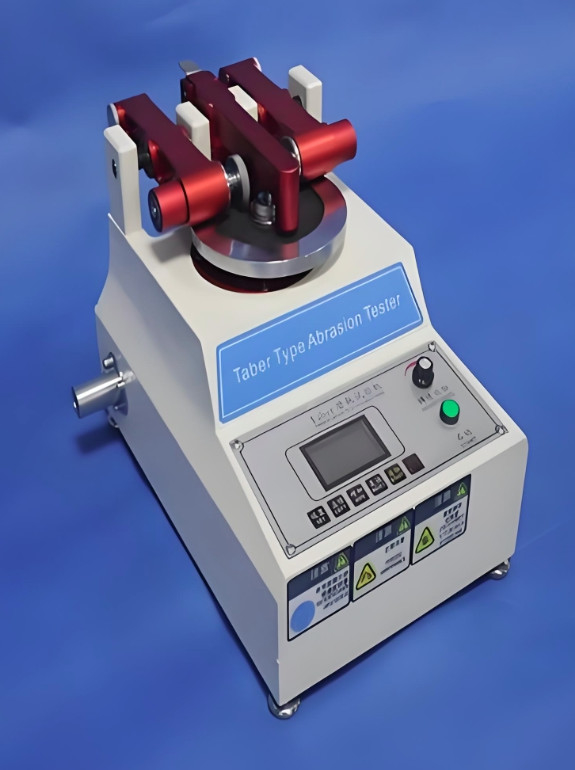

DX8380 Rubber And Plastic Rolling Wear Testing Machine TABER Abrasion Tester

Rubber and plastic rolling wear tester (TABER abrasion tester)

This machine conforms to GB5478, DIN-53754, TAPPI-T476

It is suitable for the rolling wear performance of plastic plates and sheet specimens, as well as cloth, paper, coatings, plywood, leather, floor tiles, glass, natural plastics, etc. The test method is that the rotating specimen is subjected to a pair of abrasion wheels, and the specified load is applied, and the abrasion wheels are driven when the specimen rotates, so as to wear the specimen. Heavy wear loss

The amount is the weight difference between the material before and after the test. Comply with GB5478, DIN-53754, TAPPI-T476, ASTM-D1175 test standards.

1. Turntable rotation speed: 60r/min

2. The diameter of the grinding wheel mounting shaft: 15.88mm

3. The length of the grinding wheel installation arm (the distance from the fulcrum to the force point): 80mm

4. Weights: 250 and 750g each

5. Equipped with abrasion powder suction device

6. Grinding wheel outer diameter: 50mm
