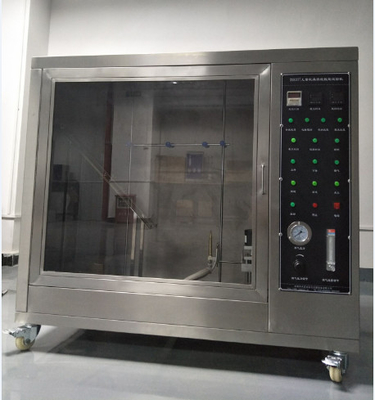

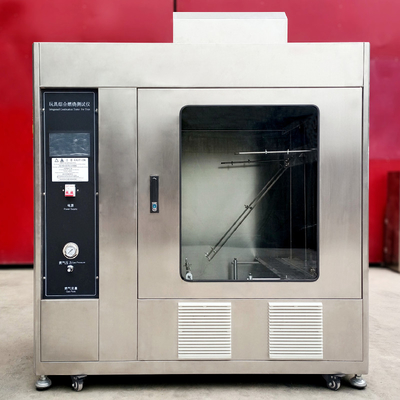

DX8037 Children's Toy Combustion Performance Testing Equipment
The inflammability testing machine of children's toys meets the standards:
Comply with the fire and flame retardant requirements in Article 4.5 of the basic safety technical specifications for children's furniture in SN/T 2144-2008: the specific technical requirements and test methods for the fire and flame retardant performance of various materials used in children's furniture; According to the requirements of Article 4.1.2 of the standard GB14747-2006 (quoting Appendix B of GB6675-2003) and (GB6675-03 and EN71-2:2006).
Scope of application of children's toy flammability testing machine:
It is mainly used to test the burning performance of children's clothing or toys and their accessories, and to evaluate the burning rate and time of the following types of toys Clothing worn by children (cosmetic clothing), especially shawls, draped clothes and similar items, toys accessible to children, such as play tents and playrooms Children can hold toys, stuffed software toys Toys that can be worn and played with in the form of masks and wigs.
Main performance parameters of children's toy combusticity testing machine:
Automatic ignition, automatic timing
Burner: throat diameter is Φ0.19±0.02mm, length 75mm, mixed air outlet diameter Φ1.7, air inlet hole 4×Φ4mm.
Fixture: can be adjusted arbitrarily to suit different samples
Burning flame height: 10~50mm adjustable
Ignition time: 5s
Timing range: 0~99.99s
Ignition time: 0~99.99s
Instrument volume: 950×600×860cm(L×W×H)
Flame angle: fixed at 45° and 90°, other angles can be adjusted
Flame Position: adjustable
Flame size: adjustable
Air source: butane and propane gas (provided by the user)
Size: L1000×W600×H 200mm
Power supply: AC 220V/50Hz
Weight: about 40Kg
