Coiled Stretch Fatigue Testing Equipment Test Service Life Of Coiled Wire

Large Image : Coiled Stretch Fatigue Testing Equipment Test Service Life Of Coiled Wire

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Model Number:	DX8302

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	15 sets per month

Contact Now

Coiled Stretch Fatigue Testing Equipment Test Service Life Of Coiled Wire

Description

Scope Of Application:	Of The Coiled Wire	Function:	Is Specially Designed To Test The Service Life Of The Coiled Wire
Telescopic Pitch:	300~1800mm	Telescopic Speed:	10~30c.p.m
Number Of Samples:	5 (pcs)	Air Pressure Source:	7kg/cm2
Dimensions (W×D×H):	90×60×200cm	Electric Control Box:	28×30×112cm
Highlight:	Coiled Stretch Fatigue Testing Equipment , Coiled Wire Stretch Fatigue Testing Equipment , Coiled Wire Stretch Fatigue Test Equipment

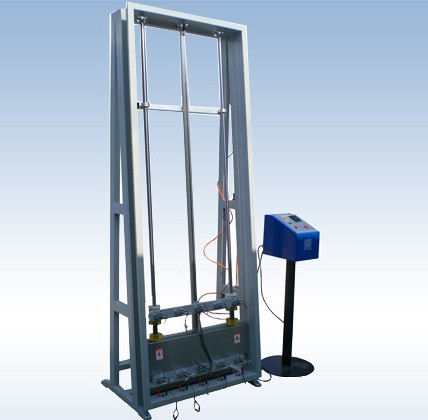

DX8302 Coiled stretch fatigue testing equipment

This machine is specially designed to test the service life of the coiled wire. During the test, the specimen is continuously stretched and contracted by pneumatic power in the energized.

When the current is interrupted or the set number of times is reached, the damaged part and the number of expansion and contraction times are inspected.

Technical Parameters:

Number of samples: 5 (pcs)

Telescopic pitch: 300~1800mm

Telescopic speed: 10~30c.p.m

Air pressure source: 7kg/cm2

Counters: 6 digits

Dimensions (W×D×H): 90×60×200cm

Electric control box :28×30×112cm

Weight :170kg

Power supply: 1∮AC 220V 2A
