Wire And Cable Circumferential Rotation Testing Machine Test Degree Of Damage Of Wires With Threaded Clamping Type

Large Image : Wire And Cable Circumferential Rotation Testing Machine Test Degree Of Damage Of Wires With Threaded Clamping Type

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Certification:	IEC884-1
Model Number:	DX8309

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	15 sets per month

Contact Now

Wire And Cable Circumferential Rotation Testing Machine Test Degree Of Damage Of Wires With Threaded Clamping Type

Description

Standard:	GB2099.1-96, GB16915.1-97 And IEC884-1	Scope Of Application:	Of Wires
Function:	Used To Test The Degree Of Damage Of Wires	Test Rate:	10±2r/min (GB16915.1-97:12 ±1r/min)
Rotation Radius:	100mm	Power Supply:	AC: 220V/50Hz
The Test Distance:	Adjustable From 250 ~ 280mm	Weight:	0.3kg\ 0.4kg\ 0.7kg\ 0.9kg\ 1.4kg\ 2.0kg
Highlight:	Cable Circumferential Rotation Testing Machine , Wire Circumferential Rotation Testing Machine

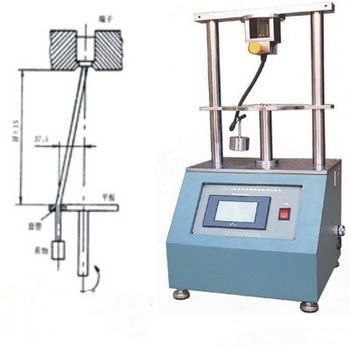

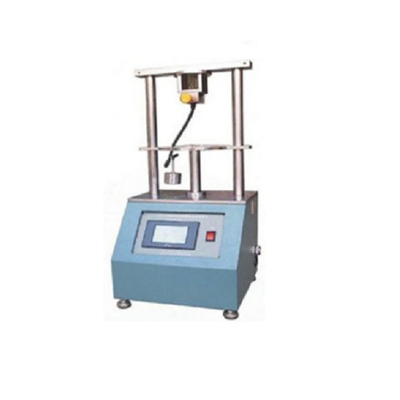

DX8309 Wire Damage Testing Equipment, Wire and Cable Circumferential Rotation Testing Machine

Wire And Cable Circumferential Rotation Testing Machine Test Degree Of Damage Of Wires With Threaded Clamping Type 0

Scope of application: It is mainly used to test the degree of damage of wires with threaded clamping type and non-threaded terminal fixed connection components to test whether they can withstand the mechanical stress that occurs during normal use.

Conform to the standard: GB2099.1-96, GB16915.1-97 and IEC884-1 in the corresponding clauses and other relevant standards of electrical accessories are developed.

Main parameters:

Power supply AC: 220V/50Hz

Test rate 10±2r/min (GB16915.1-97:12 ±1r/min)

Rotation radius 100mm

The test distance is adjustable from 250 ~ 280mm (GB16915.1-97:250 ~ 270mm)

Test times (number of turns) 0 ~ 999999 times arbitrary setting

Weight: 0.3kg 0.4kg 0.7kg 0.9kg 1.4kg 2.0kg (GB16915.1-97:30N 40N 50N 60N two each)
