Wire Heating Deformation Testing Machine To Test Degree Of Thermal Deformation Of Materials

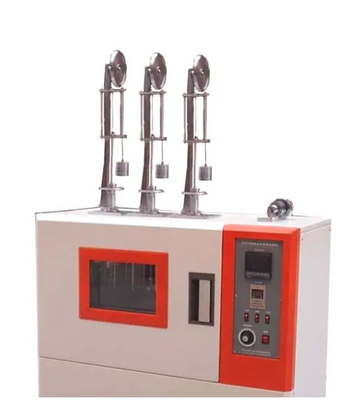

DX8389 Wire heating deformation testing machine

Equipment use: This machine is used to test the degree of thermal deformation of materials such as plastics and wire sheaths.

Test method: At a specific temperature, place the specimen freely in the testing machine for 30 minutes, then clamp it between the parallel plates of the machine, add the specified load, and place it at the same temperature for another 30 minutes. Measure the thickness difference before and after heating with a measuring instrument, and divide the thickness difference by the thickness before heating to obtain the deformation rate.

Compliant with standards: Meets the requirements of UL1581 and GB2099 test standards.

Detailed parameters:

1. Test setup: 3 sets
2. Temperature: Normal temperature~300 ℃
3. Weights: 50, 100, 200, 500, 1000g, three each
4. Scale: Japan MITOTOYO 0.01/10mm
5. Volume: Inner box size:(L)600mm * (D) 400mm * (H) 360mm
6. Outer box dimensions: (L)1100mm * (W)620mm *(H)1730mm
7. Inner box material: SUS # 304 stainless steel.
8. Outer box material: 1.5mm steel plate, using electrostatic baking paint
9. Insulation material: high-density asbestos
10. Weight: 113kg
