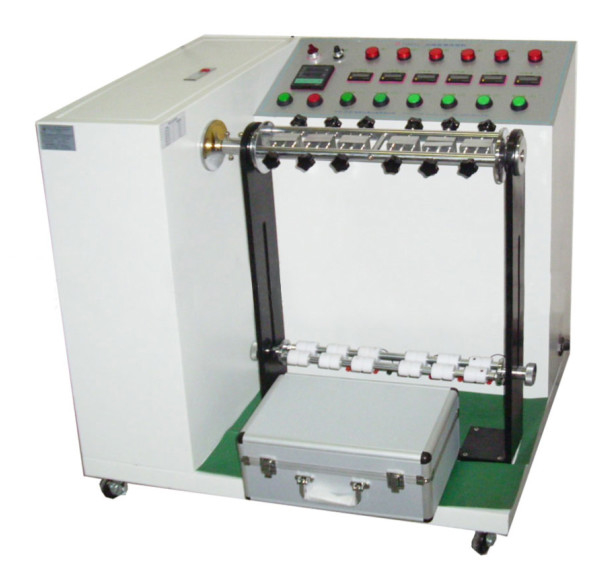

DX8334 Six-group Swing Testing Machine

DX8334 Six-group swing testing machine

This machine is specially designed to test the flexural strength of DC cables, earphone cables, USB cables, plug lead-out wires and wires, by fixing the sample on the fixture, and adding a certain load, the fixture swings left and right during the test, and after a certain number of times, check its wire breaking rate; or when power is no longer available, see the total number of swings. This machine can count automatically, and when the sample is bent to the point where the wire is broken and cannot be energized, the operation can be automatically stopped.

Conform to standards: Comply with GB2099, UL817, VDE standards for general testing.

Technical Parameters:

Fixtures Grips 6 sets

Flexing angles 45°, 60°, 90° adjustable

Flexing speed 10~60 times/min adjustable

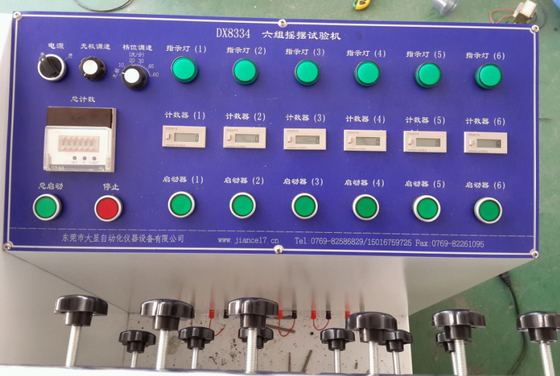

Auto-counter 6 pcs., counted separately

Load 50, 100, 200, 300, 500g each six

Dimension(W×D×H) 86×51×81cm
