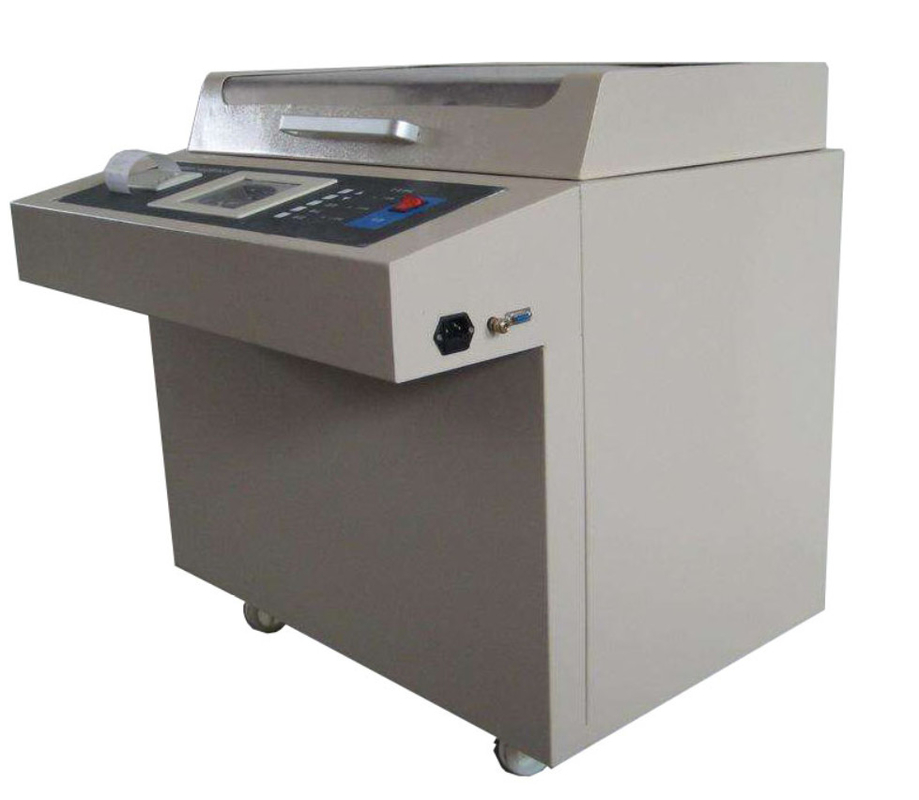

DX8388C Insulating Oil Dielectric Strength Tester

DX8388C Insulating oil dielectric strength tester

1. Product Overview:

The insulating oil dielectric strength tester is designed according to the requirements of international IEC-156 and national standard GB507-86<<Insulating oil dielectric strength determination method>>, DL/T846.7-2004, IS6792/BS5874, ASTMD1816, ASTMD877, ASTMD1816 and other standards, and is used to evaluate the electrical properties of insulating materials.

2. Product features:

1. This instrument is equipped with an automatic detection function, such as automatically entering the reset state when the machine is turned on to execute the voltage regulator back to zero;

2. A micro panel printer is used to automatically or manually print out the test results;

3. According to the user's needs, the number of tests, stirring and standing time, and the voice-controlled light control can be changed to remind continuous printing and non-printing;

4. This instrument adopts automatic magnon stirring to eliminate the unevenness and bubbles of oil samples;

3. Product parameters:

Power supply: AC380V ±10%, 50HZ ±5%

Rest time: 0-10 minutes and 39 seconds

Measuring range: AC 0-80KV

Conditions of use: Ambient temperature 5°C-40°C

Current limit: 50mA

Relative humidity: 1. ≤75% non-condensing

Measurement accuracy: 1%

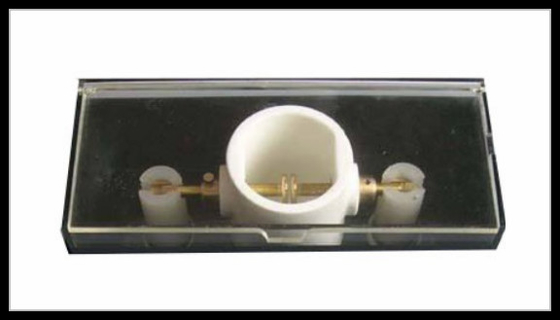

Oil cup clearance: 2.5mm (diameter of oil cup feeler gauge)

Voltage regulation speed: 2KV/S±10% 0.5~5kv/s (adjustable)

Volume: 415×315×315mm

Scheduled settings: 1-10 times

Weight: 28kg

Stirring time: 0-1 minute 39 seconds
