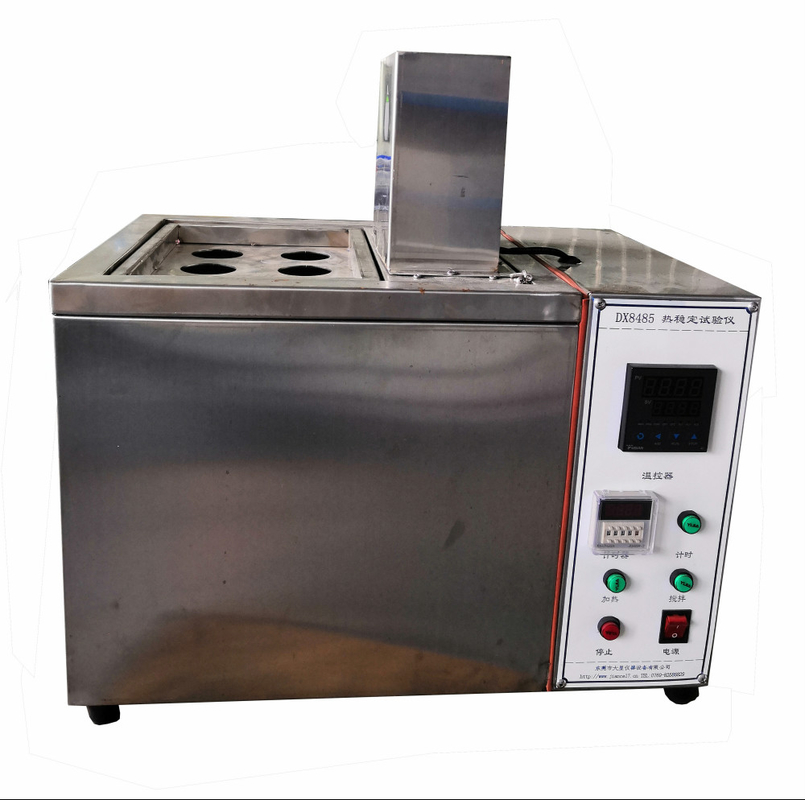

DX8485 Thermal Stability Tester Timer 0-99H

Large Image : DX8485 Thermal Stability Tester Timer 0-99H

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Certification:	GB/T2951.7
Model Number:	DX8485

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	15 sets per month

Contact Now

DX8485 Thermal Stability Tester Timer 0-99H

Description

Standard:	GB/T2951.7、UL758、 UL1581、 UL62、 ASTM、 GB-1690、IEC811、VDE0281	Temperature Range:	Room Temperature ~ 250°C
Temperature Resolution:	0.1°C	Timer:	0~99H
Working Power Supply:	AC220V/50Hz	Heater Power:	3.5KW
Highlight:	DX8485 Thermal Stability Tester , Thermal Stability Tester

DX8485 Thermal Stability Tester

Standards: Made in accordance with GB/T2951.7 "Thermal Stability Test of Insulation and Sheathing", in line with UL758, UL1581, UL62, ASTM, GB-1690, IEC811, VDE0281 test standards.

Scope of application: It is mainly used for the insulation and sheath test of polyvinyl chloride mixture for wires and cables.

Technical Parameters:

1. Temperature range: room temperature ~ 250°C.

2. Temperature resolution: 0.1°C

3. Timer: 0~99H.

4. Working power supply: AC220V/50Hz

5. Heater power: 3.5KW

6. Test oil: 2# lubricating oil and insulating oil are used. (Bring your own)

7. Outer carton size: 350 (length), × 300 (width), × 250 mm (height)

8. Inner size: 27L

9. Glass tube: 110mm long, 5mm outer diameter, 4mm inner diameter sealed at one end

10. PH value test strip: 1~7PH
