50KN Insulator Tensile Flexure Testing Equipment Mainly Used To Test The Tensile Load Compressive Load

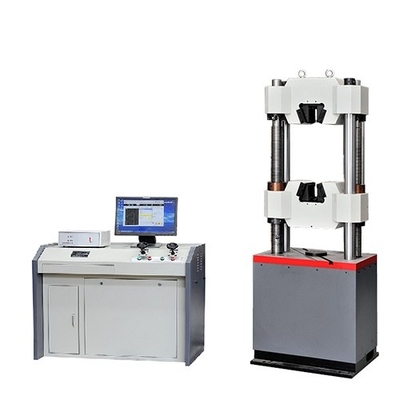

DX6153 50KN Insulator Tensile Flexure Testing Machine

Product Introduction:

The insulator tensile testing machine is mainly used to test the tensile load, tensile strength, tensile failure, failure load, failure load, tensile deformation, bending load, bending failure, bending strength, bending failure, bending strength, bending deformation, bending strength, bending deformation, compressive strength, compressive strength, bearing capacity, compression deformation, compressive load, compressive load and other mechanical properties of various insulators in the power industry.

Technical Parameters:

Style: microcomputer control, gantry type

Maximum test force: 50kN;

Test force binning: stepless speed regulation

Test range: 1%-100%FS

Accuracy of test force; ±1%

Displacement resolution: 0.1mm

Displacement speed control range: 0.1mm/min~500mm/min

Displacement velocity control accuracy: ±1%

Testing machine level: 1 grade

Deformation indication error: ≤± (50+0.15L)

Test space: Test space width≥ 380mm (can be customized on request)

Beam to table distance≥ 600mm (can be customized upon request)

Appearance: It should meet the requirements of GB/T2611

Completeness: meet the requirements of the standard

Protection function: overload protection, limit protection, over-current, over-voltage, over-temperature and over-temperature protection of electronic control system.

Net weight of the machine: about 400Kg

Testing machine size: about 760*420*1850 mm

Power supply: 220V, 50Hz
